915MHz COFDM video transmitter with Ethernet video input and dual RF diversity receiver

Here is a demand of 915MHz COFDM video transmitter with Ethernet video input and dual RF diversity receiver, H.265 low-latency HD streaming, AES-256 secure link.

Technische Daten

Frequenzbereich: 902–928 MHz (Center 915 MHz, behoben)
Ausgangsleistung: 5 W continuous operation
Modulation: COFDM, QPSK
Kanalbandbreite: 2 MHz (1 MHz optional if available)
Videokodierung: H.265 (HEVC)
Videoauflösung: 1280×720 @ 30fps
Bitrate: 1.8–2.2 Mb/s
Verschlüsselung: AES-256 secure encryption
Eingabeschnittstelle: Ethernet (IP video input)
HF-Anschluss: SMA-F bulkhead
Stromversorgung: 12–16.8 V DC, ≤5 A

• Built-in reverse polarity and overvoltage protection
• DC pigtail cable

Kühlung: Integrated heatsink with airflow safety design
Gehäuse: IP65 dustproof and waterproof housing
Maße: 65 × 48 × 24 Millimeter
Telemetry Output: UART (RSSI / SNR / BER reporting)
Empfänger: Dual-channel diversity (MRC), frequency 902–928 MHz

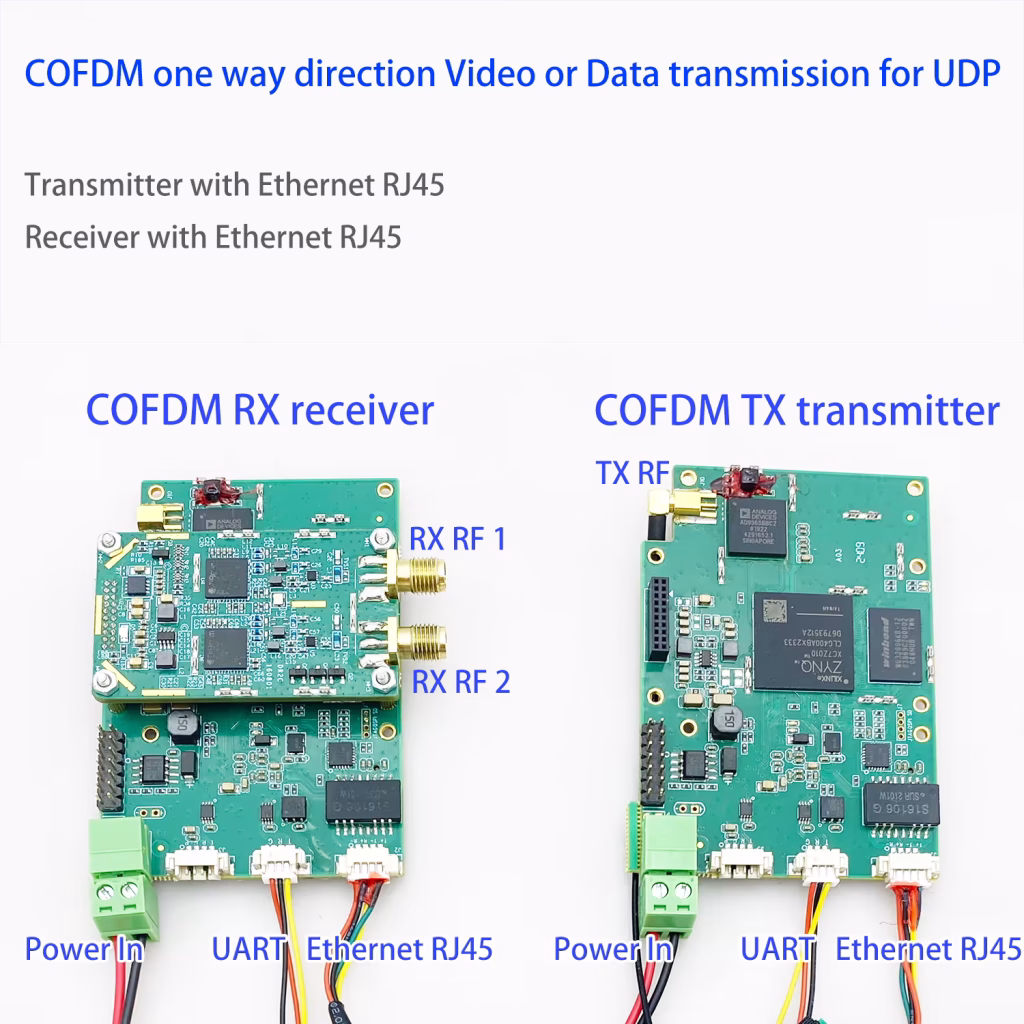

https://ivcan.com/p/cofdm-one-way-direction-video-or-data-transmission/Unser Vcan1816b can meet this demand.

The Vcan1816b transmitter supports frequencies from 170–3500 MHz, while the receiver covers 170–860 MHz. To meet client requirements, we will integrate two frequency down converters on the dual RF diversity receiver.
