VCAN1294 User Manual

2 Din GPS Navigation • DVD • USB • SD • Bluetooth • Touch Screen

---

1. ўвядзенне

Thank you for choosing the VCAN1294 2 Din GPS Navigation System.
This multimedia head unit combines GPS -навігацыя, DVD playback, Bluetooth, USB/SD media support, FM/AM radio, and a full-touch interface to enhance your in-car entertainment and driving convenience.

Please read this manual carefully before use.

---

2. Агляд прадукту

The VCAN1294 is designed for a wide range of 2-DIN dashboard vehicles. Ён мае high-resolution touch screen, built-in GPS, multi-format media playback, і hands-free calling for a safer and more enjoyable driving experience.

Main Functions

• GPS navigation with voice guidance
• DVD/VCD/CD playback
• USB & SD card media input
• Bluetooth hands-free calling & музыка
• FM/AM radio with RDS
• Rear-view camera input
• Кіраванне рулём (SWC) падтрымка
• High-power amplifier and EQ settings

---

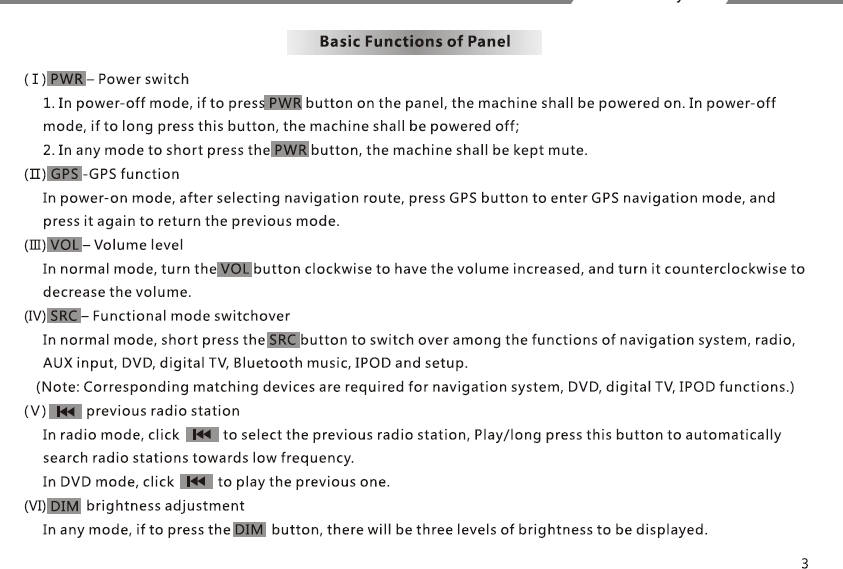

3. кнопкі & Парты

пярэдняя панэль

• магутнасць / Volume knob
• Touchscreen display
• Слот для SD-карты
• USB-порт
• Eject button
• Home/Menu/Back buttons (у залежнасці ад мадэлі)

задняя панэль

• Power harness connector
• RCA audio/video output
• Reverse camera input
• Раздым для антэны
• GPS antenna port
• Fuse

---

4. Асноўныя аперацыі

Power On / Off

• The unit powers on automatically when the vehicle starts.
• Long press the POWER button to manually turn off.

Home Menu

Доступ: рух, радыё, DVD, USB, SD, Bluetooth, Налады.

рэгулятар гучнасці

Use the knob or on-screen slider.

---

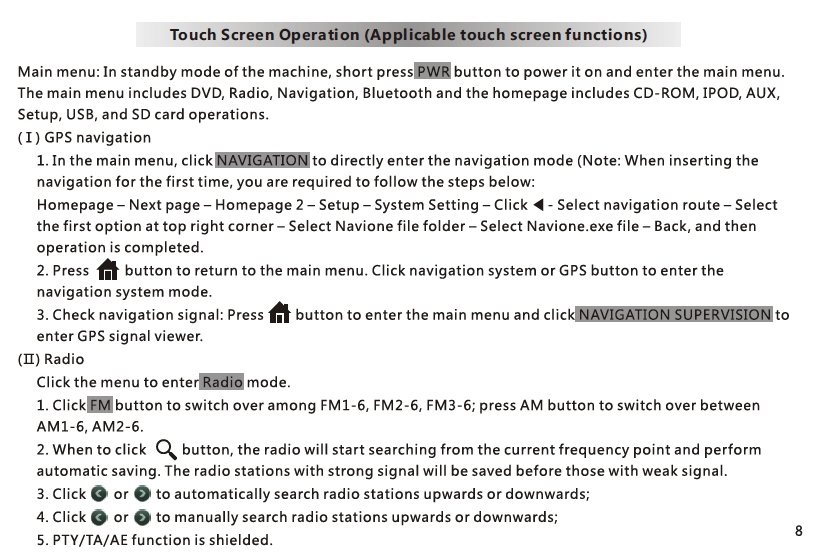

5. GPS-навігатары

• Tap NAV to enter the GPS application.
• GPS map software is stored in the SD-карта in the navigation slot.
• Follow the on-screen instructions for destination input.
• Voice guidance and zoom controls are available.

Нататка: Different map brands (iGO, Navitel, і г.д.) may be used depending on region.

---

6. DVD / CD Playback

• Insert disc; playback begins automatically.
• Use on-screen controls: Прайграць/Паўза, наступны, папярэдні, падзагаловак, Audio Track.
• Supports DVD, VCD, CD, MP3 disc formats.

---

7. USB / SD Media Playback

• Insert a USB drive or SD card with media files.
• апоры: MP4, AVI, MP3, WMA, JPG (format support may vary).
• File browser allows selection of folders and files.

---

8. Bluetooth Hands-Free & Музыка

Pairing

1. Turn on Bluetooth on your phone.
2. Search and select “VCAN1294”.
3. Confirm pairing code.

Функцыі

• Make/receive calls
• Sync phonebook
• Bluetooth music A2DP playback

---

9. FM/AM Radio

• Аўтаматычнае сканаванне, manual tune, and preset storage
• RDS support (depending on region)
• Save up to 30 stations

---

10. Rear-View Camera

• Connect reverse camera to CAM-IN порт RCA.
• When vehicle shifts to Reverse, screen switches automatically.

---

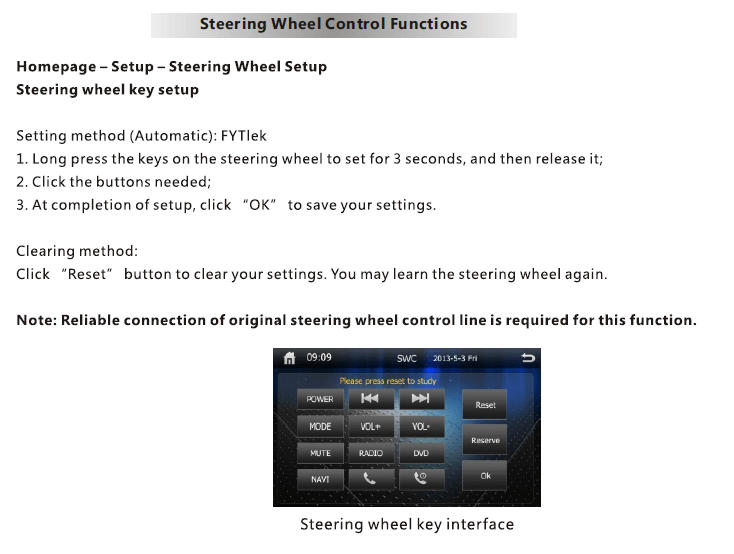

11. рулявое кіраванне (SWC)

• Увайдзіце Settings → SWC.
• Press each steering wheel button and assign a function (Аб'ём, наступны, рэжым, і г.д.).

---

12. Settings Menu

• дысплей & яркасць
• мова
• час & дата
• Sound EQ / Subwoofer control
• Navigation path
• Скід на заводзе

---

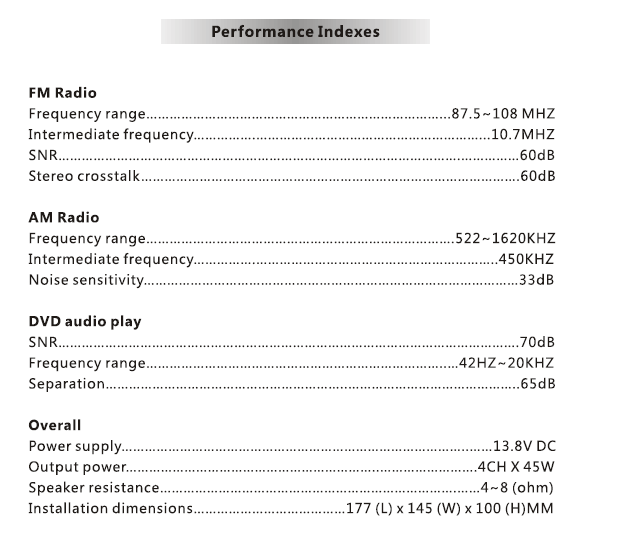

13. спецыфікацыі

пункт	апісанне
мадэль	VCAN1294
дысплей	2 Din touch screen
рух	Built-in GPS, external GPS antenna
сродкі масавай інфармацыі	DVD / CD / USB / SD
Bluetooth	Hands-free + Music A2DP
радыё	FM/AM with RDS
гукавы выхад	4 × 45W (пік)
Camera Input	ды, rear view (RCA)
захоўванне	USB up to 32GB, SD up to 32GB
ВЫ	Proprietary embedded system
магутнасць	DC 12V vehicle power

---

14. Нататкі па ўстаноўцы

• Professional installation is recommended.
• Connect the wiring harness according to the pin diagram.
• Ensure reverse trigger wire is connected to the reverse lamp.
• Use only the supplied GPS antenna.

---

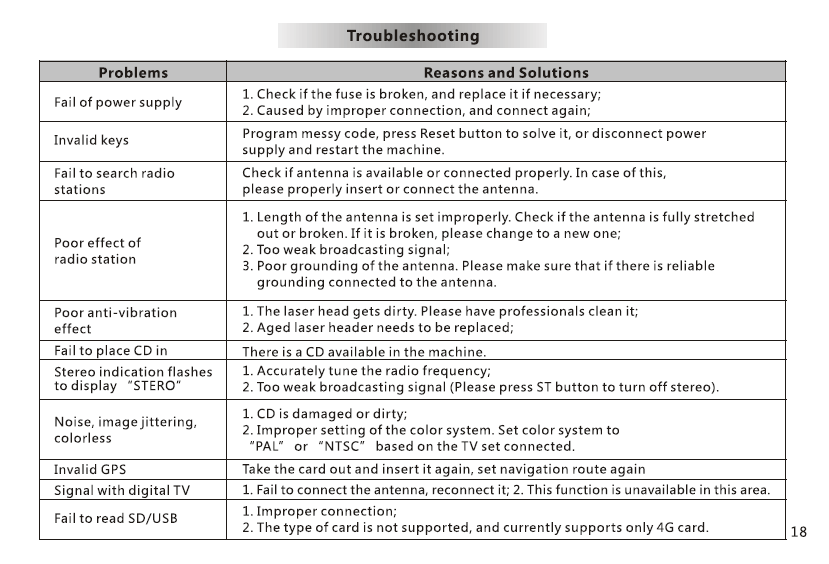

15. пошук няспраўнасцяў

No power: Check fuse, wiring harness, ACC/B+ connections.
No GPS signal: Ensure antenna is placed on open dashboard.
No sound: Check speaker wiring and MUTE settings.
Touchscreen misaligned: Perform touch calibration in Settings.

---

16. Safety Notes

• Do not operate the device while driving.
• Keep the volume at a safe level.
• Do not expose the unit to moisture or high heat.
• Use only approved accessories.
