Configuração TDD COFDM para link de controle de dados de vídeo UAV
1. Do you have a flow table data rate according to modulation (QPSK, QAM)?
| Modulação Modo | FEC Encoding | 1/4 | 1/8 | 1/16 | 1/32 |
| QPSK | 1/2 | 4.98 | 5.53 | 5.58 | 6.03 |
| QPSK | 2/3 | 6.64 | 7.37 | 7.81 | 8.04 |
| QPSK | 3/4 | 7.64 | 8.29 | 8.78 | 9.05 |
| QPSK | 5/6 | 8.29 | 9.22 | 9.76 | 10.05 |
| QPSK | 7/8 | 8.71 | 9.68 | 10.25 | 10.56 |
| 16QAM | 1/2 | 9.25 | 11.06 | 11.71 | 12.06 |
| 16QAM | 2/3 | 13.27 | 14.75 | 15.61 | 16.09 |
| 16QAM | 3/4 | 14.93 | 16.59 | 17.56 | 18.10 |
| 16QAM | 5/6 | 16.59 | 18.43 | 19.52 | 20.11 |
| 16QAM | 7/8 | 17.42 | 19.35 | 20.49 | 21.11 |
| 32QAM | 1/2 | 14.93 | 16.59 | 17.56 | 18.10 |
| 32QAM | 2/3 | 19.91 | 22.12 | 23.42 | 24.13 |
| 32QAM | 3/4 | 22.39 | 24.88 | 26.35 | 27.14 |
| 32QAM | 5/6 | 24.88 | 27.65 | 29.27 | 30.16 |
| 32QAM | 7/8 | 26.13 | 29.03 | 30.74 | 31.67 |

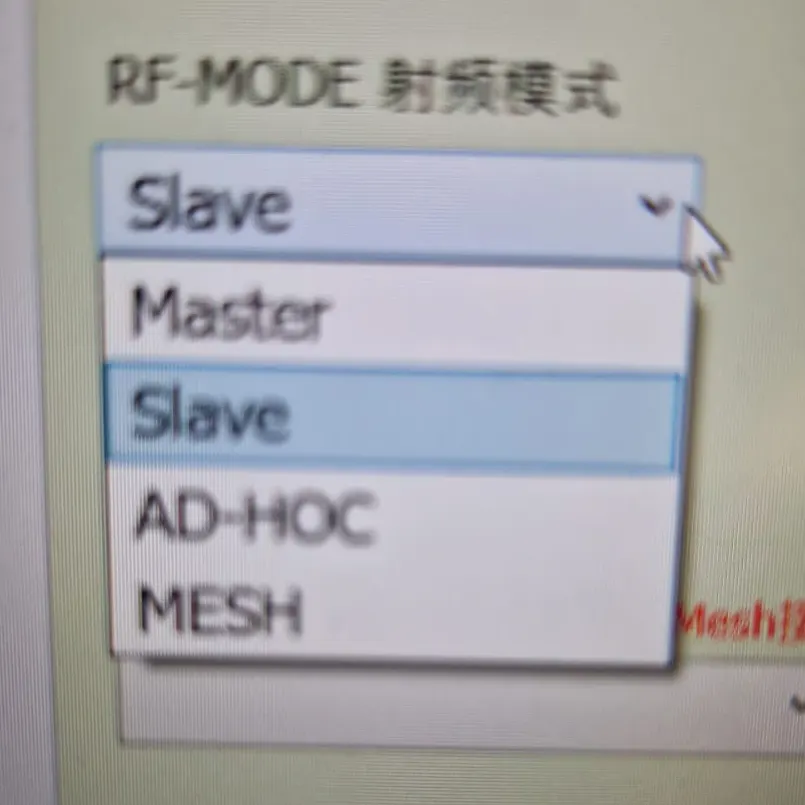

2. What is the meaning of the four RF modes? Mestre, Salve, AD-HOC, Malha?
The software is common to use.
In Point-to-Point mode, Your products are two units, one is the transmitter (salve, com dissipador de calor) and another is the receiver (mestre, without heat sink).
In Point-to-Multipoint mode, it supports one master (receptor) and four slaves (Câmera IP).
Another optional MESH and AD-HOC are for over 2 units of another type of networking.
TDD COFDM Config PC software download
The TDD COFDM Config for UAV Video Data Control Link is a reliable and secure solution for controlling video data links on unmanned aerial vehicles (UAVs). This config is designed to provide a high-speed, low-latency connection between the UAV and the ground station, allowing for real-time video streaming and data transfer.
The TDD COFDM Config utilizes a Time Division Duplex (TDD) protocolo de comunicação, which allows for simultaneous transmission and reception of data. This ensures that the data link is always available and reliable, mesmo em ambientes desafiadores. The config also utilizes a Code Division Multiple Access (CDMA) modulation scheme, which provides a robust and secure connection.
The TDD COFDM Config is designed to be lightweight and compact, making it ideal for use on UAVs. It is also highly customizable, allowing for easy integration into existing systems. With its reliable performance and secure connection, the TDD COFDM Config is the perfect solution for controlling video data links on UAVs.
