transmissor de vídeo sem fio cofdm

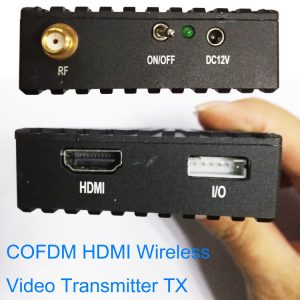

Cofdm wireless video transmitter HDMI COFDM Wireless Image Video Transmission transmitter Transceiver

Pontos de venda

Air To Ground>15 km (LOS, UAV, Drone)
Ground Distance>1 km (LOS)
Ground Distance>600 Medidor (NLOS)
300Mhz~1000Mhz

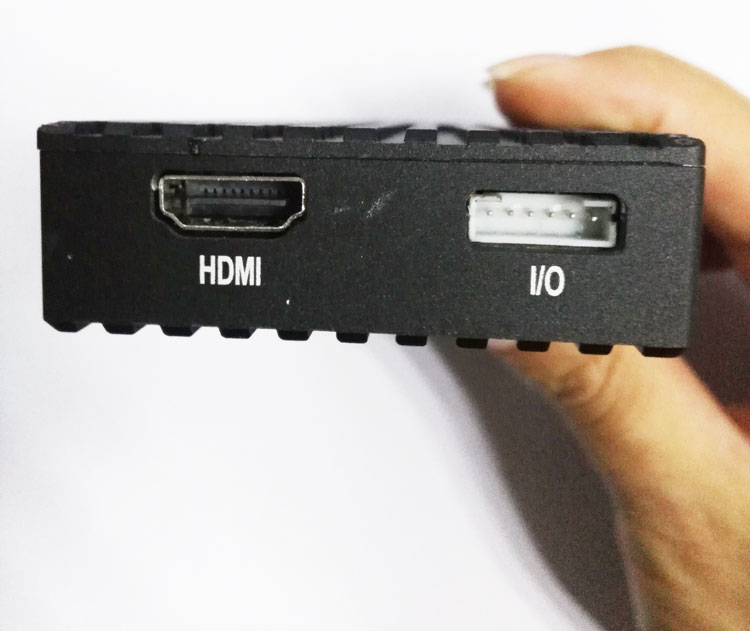

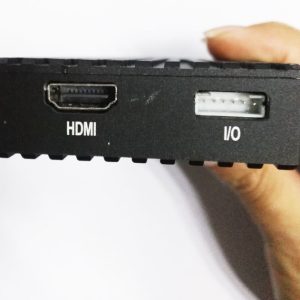

HDMI 1080P input
Atraso < 300 milissegundo
1~5W RF output

Vantagem

Machine small size, leve, tailored for the UAV
Excellent anti-jamming capability and non-line-of-sight diffraction ability
Clear picture quality, high-definition 1080P effect
The real-time image is clear and smooth
The receiver board size is small, easy to integration

Especificação

Lista de embalagem

Tiny transmitter 1pc
Receiver 1pc
Transmitter Power cable 1pc
Transmitter Antenna 1pc
Receiver Antenna 2pcs
RF extended cable 2pcs

COFDM-903T test the termperture

COFDM-903T 31db

Gallery

Perguntas frequentes

Control Board

Pergunta: Is there a button combination that will allow a user to change DVB-T parameters like setting Guard Interval, FEC, Constellation, etc.? how can we set the unit to have better image quality like 16QAM and more robust performance like Guard Interval 1/16 and FEC 1/2?

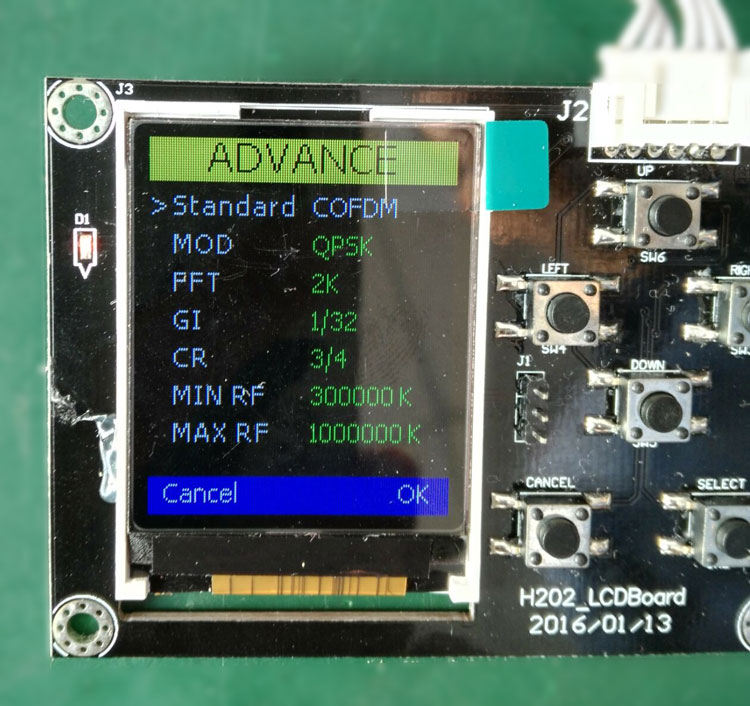

Responder: Can you see the below menu on the control board?

Pergunta: How to enter the advanced setting?

Responder: When COFDM-903T is in the boot, hold (imprensa) the SELECT button (bottom right corner) until it is displayed on the screen, then release the button. After the start, in the configure -> advance within the parameters can be changed.
