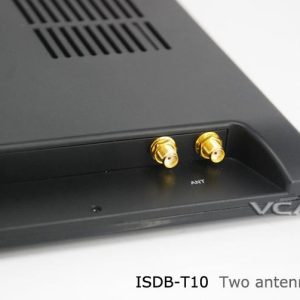

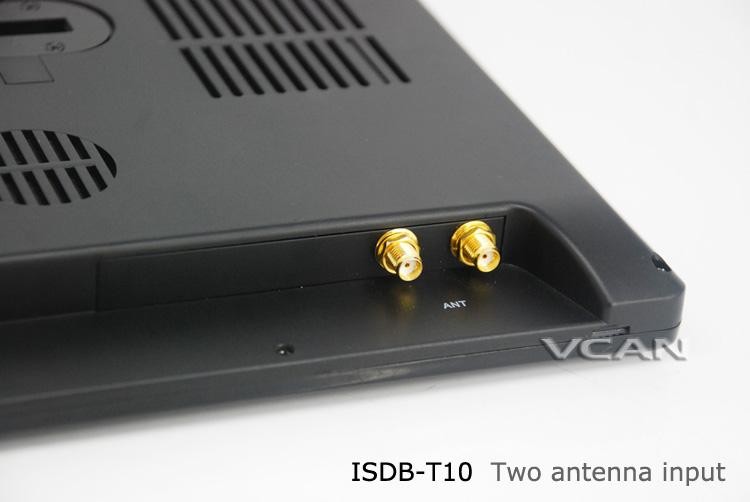

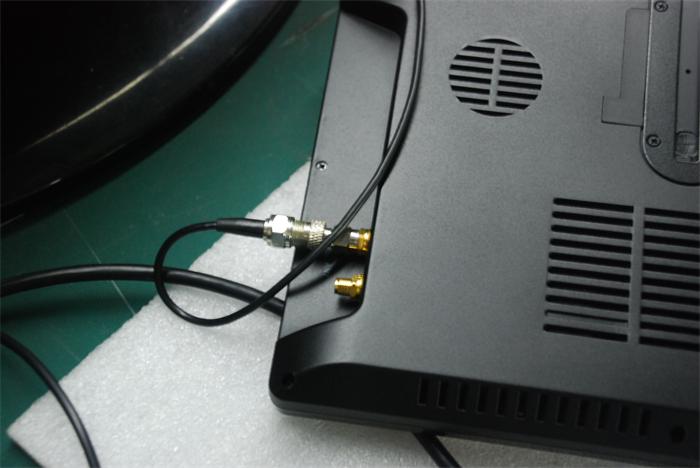

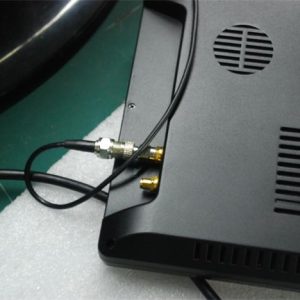

2 sintonizador 2 antenna ISDB-T digital tv receiver
2 sintonizador 2 antennae ISDB-T digital tv receiver 10.1-inch full segment digital TV receiver for Japan mini b-cas card reader high speed moving

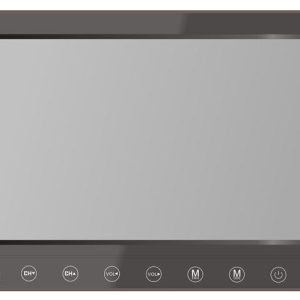

ISDB-T10 10.1 inches digital TV receiver with full seg one seg decoder
1、 Product Suitable for application of countries:：Japão (Japanese market need B-cas card for 1080p tv channel)、Brasil、southAmerica and other countries and regions.
2、Products adopt advanced diversity reception ISDB chip.
receiving sensitivity is very strong（input level<-83dBm@ Full-seg 64QAM C/R=3/4；input level <-95dBm@ 1-seg QPSKC/R=2/3）.
3、product also can support the RGB Interface of LCD screen, Resolution the biggest support up to 1980X1080.
4、Product has powerful TV program management functions, apoiar 7 days navigation electronic program guide (EPG).
5、Products have powered off memory function, after turn on the television, the current channel is the last time channel when outage.
6、has over-voltage, over current, reverse, EMI interference resistance,、power purify, and protective measures.
7、wide power input, support 10~30 Voltage input；
8、Strong stability and high receiving sensitivity, upgrade, e confiabilidade.
ISDB system
Entrada
Frequência de entrada：（Brazil：174 ~ 216MHz & 470~806MHz）（Japan：170MHz ~ 770MHz）
input power：-95dBM~-0dBM
input impedance：50ohm
Demodulação
modulation system：QPSK，16-Controle de qualidade，64-Controle de qualidade
largura de banda：6MHz
II decoding
decodificação de vídeo：MPEG4，AVC/H.264
Audio decoding standard: MPEG2，AAC
Supported language
japonês / Português / Espanhol / Inglês
LCD screen display
RGB output
analog video output(opcional)
Video output port (CVBS)
output mode：Japão：NTSC；Brasil：PALMA
impedância de saída：75ohm
Nível de saída：1.0±20mVp-p（output format CVBS）

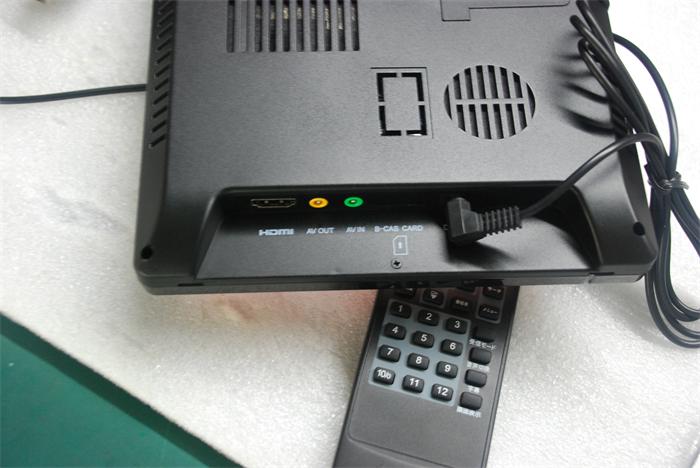

Digital video output（optional）
HDMI 1.4
Support format:
- 1920x1080p @ 60Hz
- 1920x1080i @ 30Hz
- 1280x720p @ 30Hz
- 720x480i @ 60Hz
- 720x480p @ 60Hz
saída de áudio
1-way 2W/8Ω loud speaker；1 way earphone
Interface USB

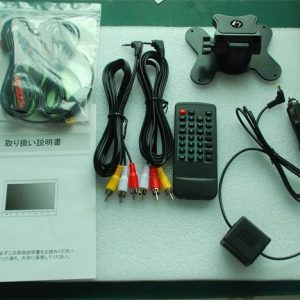

Package Updated
Machine power supply interface（ 5V DC），
Potência de entrada: Car battery / Car cigarette lighter
Consumo de energia: 3.5W
Temperatura de trabalho: -20~75℃
tamanho: 143 x 88 x 23 milímetros
Peso: About 250g
