Receptor de vídeo COFDM

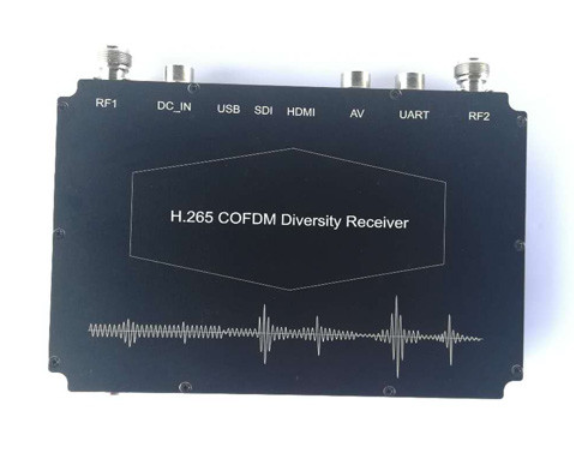

H.265 cofdm video Receiver industrial grade NLOS transmission dual antenna​

Introdução do produto

HD H.265/H.264 IP COFDM Rx HD decoding module, this product has an HDMI output interface, CVBS analog audio, and video output interface, Interface USB, SDI interface, and RJ45 interface. The use of non-line-of-sight (NLOS) transmission COFDM multi-carrier demodulation technology, transparent data interface to provide balanced and stable high-speed rate, support HTTP, RTSP, RTMP, UDP (unicast and multicast) protocol. Receive TS stream from the encoder, can set video output resolution according to different needs, design integrado altamente integrado. It can help you complete long-distance wireless link design more conveniently and quickly. It can be applied to high-definition digital broadcasting, security systems, segurança Pública, polícia armada, combate a incêndios, and other fields. It is widely used in multi-channel video streaming, unmanned control systems with high standards, and intelligent control equipment.

Características principais

 H.265 high-efficiency full HD 1080p decoding compression

 COFDM ultra-narrowband demodulation technology

 Support H.264/H.265 full-featured image decoding in COFDM mode

 Supports military-grade non-standard 128-bit AES decryption

 Transparent network/serial port high rate transmission

 Support for USB image recording

 Support CVBS, HDMI, SDI output

 Support full-band / ultra-narrow band / multi-bandwidth modulation (1M/2M/4M/8/)

 Digital panel operation and display, fácil de usar

Características técnicas:
