CVBS-IP 변환기, 이더넷 출력에 대한 가장 작은 AV 입력 인코더 보드, 복합 비디오 오디오, 또는 카메라를 IP로 변환
목차
인코더 모듈 보드
디코더 모듈 보드
사용자 정의 가능
새로운 인코더 제품
| 아니. | 제품명 | 구성 | 주요 특징 | 상태 |
|---|---|---|---|---|
| 1 | 듀얼 채널 USB UVC 가시광선 비디오 인코더 | 2× USB 입력 | 듀얼 USB 카메라 비디오 인코딩 지원, 및 RTSP 스트리밍; 로컬 CVBS/HDMI 출력; 전환 가능한 디스플레이 모드 | 양산 |
| 2 | 듀얼 채널 인코더 (1× USB 가시광선 + 1× USB 열화상 카메라) | 2× USB 입력 | 듀얼 USB 카메라 지원 (보이는 + 열의) 포착, 부호화, 및 RTSP 스트리밍; 로컬 CVBS/HDMI 출력; 전환 가능한 디스플레이 모드 | 양산 |
| 3 | RTSP 디코더 HDMI/CVBS 디스플레이 모듈 | HDMI + CVBS 출력 | 최대 4×1080P@30fps RTSP 스트림 디코딩 지원; 비디오 스트리밍 프로토콜 전달 지원; HDMI/CVBS 출력 디스플레이 | 샘플 사용 가능 |
| 4 | RTSP 디코더 HDMI/CVBS 디스플레이 모듈 4.3"/5" LCD | HDMI 출력 + LCD 화면 | 최대 4×1080P@30fps RTSP 스트림 디코딩 지원; 프로토콜 전달; HDMI/CVBS 출력 디스플레이 | 디버깅 |
| 5 | 듀얼 채널 인코더 (1× USB 가시광선 + 1× CVBS 아날로그) | 1× CVBS + 1× USB UVC 입력 | 듀얼 비디오 (USB + CVBS), 인코딩 및 RTSP 스트리밍; 로컬 CVBS/HDMI 출력; 전환 가능한 디스플레이 모드 | 디버깅 |
| 6 | 듀얼 채널 인코더 (1× USB UVC + 1× AHD 아날로그) | 1× AHD + 1× USB UVC 입력 | 듀얼 비디오 캡처 (USB + AHD), 인코딩 및 RTSP 스트리밍; 로컬 CVBS/HDMI 출력; 전환 가능한 디스플레이 모드 | 디버깅 |
| 7 | 듀얼 채널 인코더 (1× CVBS + 1× AHD 아날로그 비디오) | CVBS + AHD 2 비디오 입력 | 듀얼 아날로그 비디오 캡처, 인코딩 및 RTSP 스트리밍; 로컬 CVBS/HDMI 출력; 전환 가능한 디스플레이 모드 | 디버깅 |
| 8 | 듀얼 채널 인코더 (1× CMOS 카메라 + 1× USB 열화상 카메라) | 1× USB 인터페이스 | CMOS 지원 + USB 열화상 카메라 캡처, 인코딩 및 RTSP 스트리밍; 로컬 CVBS/HDMI 출력; 전환 가능한 디스플레이 모드 | 양산 |
당사 제품에 포함되지 않은 맞춤형 비디오 입출력 변환 솔루션의 경우, OEM/ODM 지원을 원하시면 문의해주세요. 우리는 귀하의 요구 사항에 따라 맞춤형 제품을 개발할 수 있습니다..

Recommended alternative models
기능
CVBS to IP converter AV encoding board function:
Analog audio and video input, H264 부호화, and output through the network port IP ethernet.
Composite CVBS video to IP ethernet converter encoder board
mini Video Encoder Board CVBS input and IP Ethernet output
Support UDP RTSP player VLC
Analogue camera to internet ONVIF TCP IP
장치의 기본 IP 주소는 다음과 같습니다. 192.168.1.30 Enter this IP address in the browser to open the webpage management page.

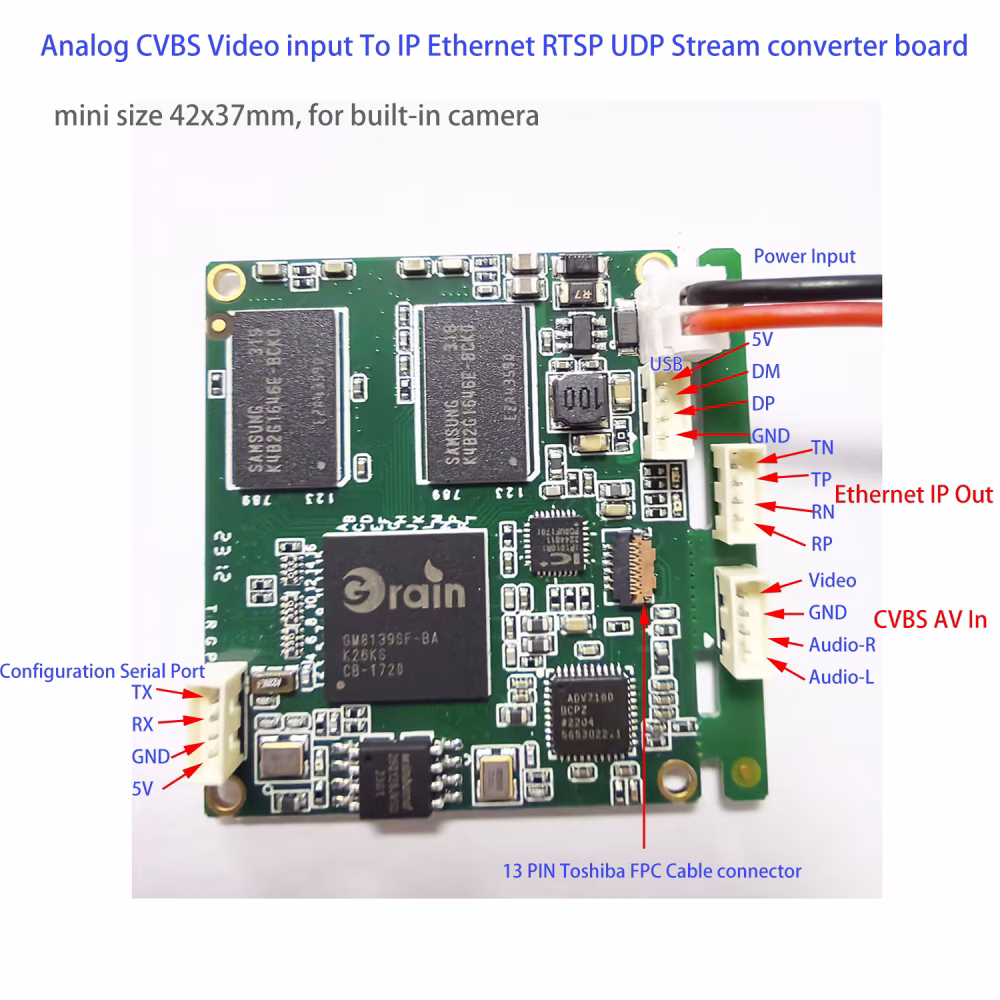

인터페이스
CVBS-IP 변환기 Refer to the figure above for the encoding module interface and interface signals. The interface description is as follows:
- Analog audio and video input interface: support analog video input, and audio input(라인 인 Way)。
- Input signal interface(4 핀 1.25mm spacer: CVBS 비디오, GND, Audio-L, 오디오-R) 과 13 핀 Toshiba FPC Cable socket multiplexing;
- 네트워크 포트: 4PIN 1.25mm spacing base, the base signal, 그리고13 PIN Toshiba FPC Cable Socket multiplexing;
- Software protocol: UDP way output.

13Pin Toshiba FPC Pin Define


USB 인터페이스: Write board firmware, the 4Pin 1.25mm spacing seat can be removed when the structure is installed.
Matching serial port:
전원 입력: 2-pin welding hole, support input voltage range 6 ~ 15V.
CVBS to IP converter board size: 42x37x1.2mm.
Heating:


This small board is the AV input and Ethernet output expansion board. It has many input and output interfaces that cannot be removed.
자주하는 질문
큐: Does your analog composite CVBS video encoding board support the simultaneous encoding of two channels of video and two channels of video streams?
에이: This model only supports one video input encoding and one video stream.
Please refer to vcan1746, this model meets your needs. It supports simultaneous encoding of two video inputs and two video stream outputs on the same IP address.


큐: Could you provide the PCB dimensions, including the hole sizes?
에이: 확신하는, 아래 사진을 확인해주세요. Or Download DXF at the below link.
HTTPS://drive.google.com/file/d/1ifl34ZIHbduXm_1IyujqyjYoPWo2ykbN

자주 묻는 질문
- CVBS currently only supports the common 단짝 (720x576) 과 NTSC (720x480) resolutions.
- Because the interface chip automatically adapts, We guess that our encoder board can not recognize your interface chip with this resolution.
- It is recommended that you connect the thermal imaging camera to an AV monitor or HDMI monitor to see if it can be displayed. 그렇다면, although the actual resolution is low, the video stream format may not be this 256x192.
- If it's HDMI, it's possible to modify the software to adapt to your camera; if it's CVBS, I think it's difficult unless you send the camera over and we can debug the software.
- If you need a suitable IR thermal imaging camera, please check our product.

More about the CVBS to IP converter encoder board
This circuit board converts analog CVBS signals into digital IP streams. These boards are frequently used in industrial, commercial, and security settings to integrate analog video into IP networks.
-
Signal Conversion:
- It transforms analog video signals from sources, such as CCTV cameras and VCRs into digital IP video streams.
-
압축:
- It usually uses video compression formats such as H.264 and H.265 to save bandwidth.
-
IP Streaming:
- The converted signal uses protocols such as RTSP, UDP, or HTTP for transmission across an IP network.
-
낮은 대기 시간:
- This system offers real-time video streaming with minimal delay, perfect for broadcasting and security monitoring.
-
Onboard Processing:
- Some boards offer built-in processing power, enabling features like motion detection, 비디오 분석, or event triggering.
-
Size and Integration:
- These devices are designed for easy integration into custom hardware or embedded systems due to their small size.
일반적인 사용 사례:
-
- Wireless video transmitter and receiver for drones: Send your CVBS or thermal camera footage to a ground-based receiver for playback with a UDP player.
-
감시 시스템: Analog CCTV cameras are being converted to IP cameras for use with network video recorders (NVR) and video management software (VMS).
-
방송: Analog video can be converted into IP streams for internet broadcasting or live streaming.
-
Industrial or Commercial Applications:Connecting older analog video equipment to today’s IP control and monitoring systems.
-
Retro Gaming Consoles: Many classic video game consoles output CVBS video. A CVBS-to-IP converter allows online gameplay streaming and integration with digital AV setups.
-
Educational and Training Systems: Microscopes and other analog devices with composite video output can be incorporated into modern online learning platforms for remote demonstrations and instruction.
-
Medical Imaging Equipment: Older medical devices like endoscopy and ultrasound systems (with CVBS output) can be updated to send video over IP to medical record systems or remote diagnostics.
-
Public Displays and Advertising:Older advertising systems and public displays using CVBS can be updated to send their content to IP-based digital signage.
- Transportation Monitoring: Older vehicle and train monitoring systems, such as backup and security cameras, often rely on CVBS signals. These cameras integrate into networked monitoring systems via converters, enabling real-time data analysis and central control.
- Event Recording and Archiving: You can use analog camcorders or VHS recorders with CVBS output to live stream or archive historical footage in digital formats accessible via IP networks.
- Industrial Equipment Monitoring: Centralized monitoring, 분석, and control of factory machinery and industrial processes is achievable by integrating legacy CVBS camera outputs into IoT frameworks.
- Legacy Video Conferencing Systems: You can adapt older video conferencing systems using composite video cameras for use with current online meeting and VoIP platforms.
- Aviation and Marine Systems: Analog video from aircraft and ship surveillance and navigation cameras often needs to be sent to control systems or streamed remotely via satellite or IP networks.
- Amateur Radio and HAM TV: Amateur television, or HAM TV, uses analog video transmitters. The conversion from CVBS to IP enables online streaming and broader reach for their broadcasts.
- Cultural Heritage Preservation: Analog video content in museums and archives can be digitized for online access, 라이브 스트리밍, or compatibility with current audiovisual technology.
How to choose cvbs to IP ethernet converter board
-
- 비디오 품질: Confirm that the board’s capabilities meet the resolution and frame rate demands of your application.
- Compression Standard: While H.264 is widely compatible, some boards may offer the more efficient H.265 codec.
- 네트워크 프로토콜: Ensure compatibility with common IP video streaming protocols such as RTSP, RTP, UDP and HTTP.
- 전력 및 크기: Remember the board’s size and power needs when integrating it into your system or product.
- Other Features: Like low latency or USB recording function, or two video input and two video streams output.
- Good communication with the after-sale services: sometimes, brand supplier is very important for you to employment the products and usage smoothly.
Ideal for legacy CCTV – stream CVBS to NVRs or IP viewers with zero lag.
Compact CVBS to Ethernet encoder – perfect for camera-to-IP conversion projects.
Plug and stream: analog video to IP in seconds with our mini AV encoder board.







iVcan.com –
I recently used this mini CVBS to IP converter board, 그리고 나는 그 성능에 매우 깊은 인상을 받았습니다. 설정은 간단했어요, and the compact size made integration into my existing hardware seamless. 영상 품질이 우수합니다, with low latency that ensures real-time streaming without noticeable delay. It supports standard protocols like RTSP and UDP, making it compatible with my network setup immediately. 전반적인, 그것은 믿을 만한, high-performance solution for converting analog cameras into IP streams, ideal for surveillance or live monitoring projects.
