Android head unit digital tv touch screen control operation app for DVB-T2 ISDB-T ATSC tuner box TV mirror wifi box

Android head unit digital tv touch screen panel control operation app for DVB-T2 ISDB-T ATSC tuner box

La description

TV mirror wifi box Description functional:

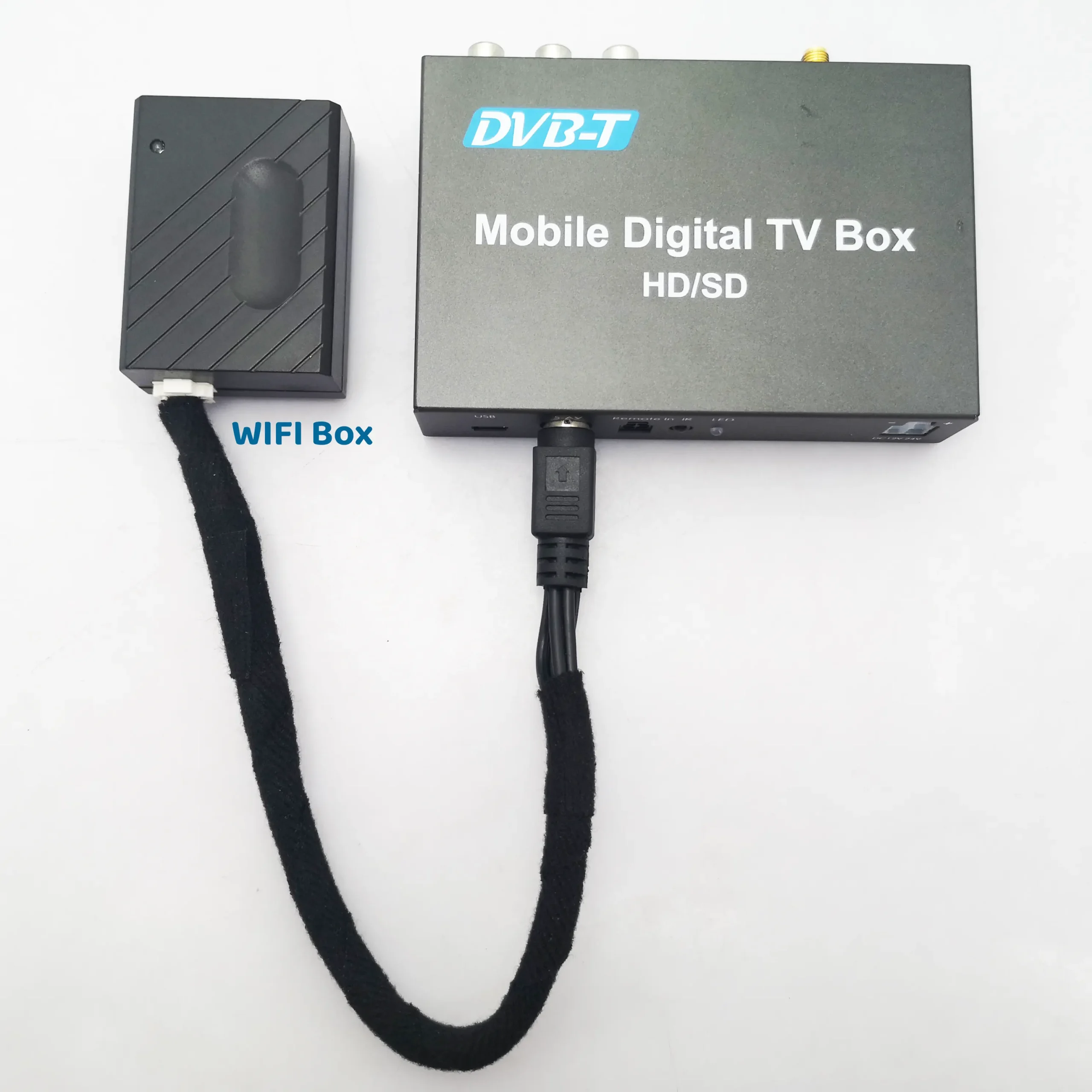

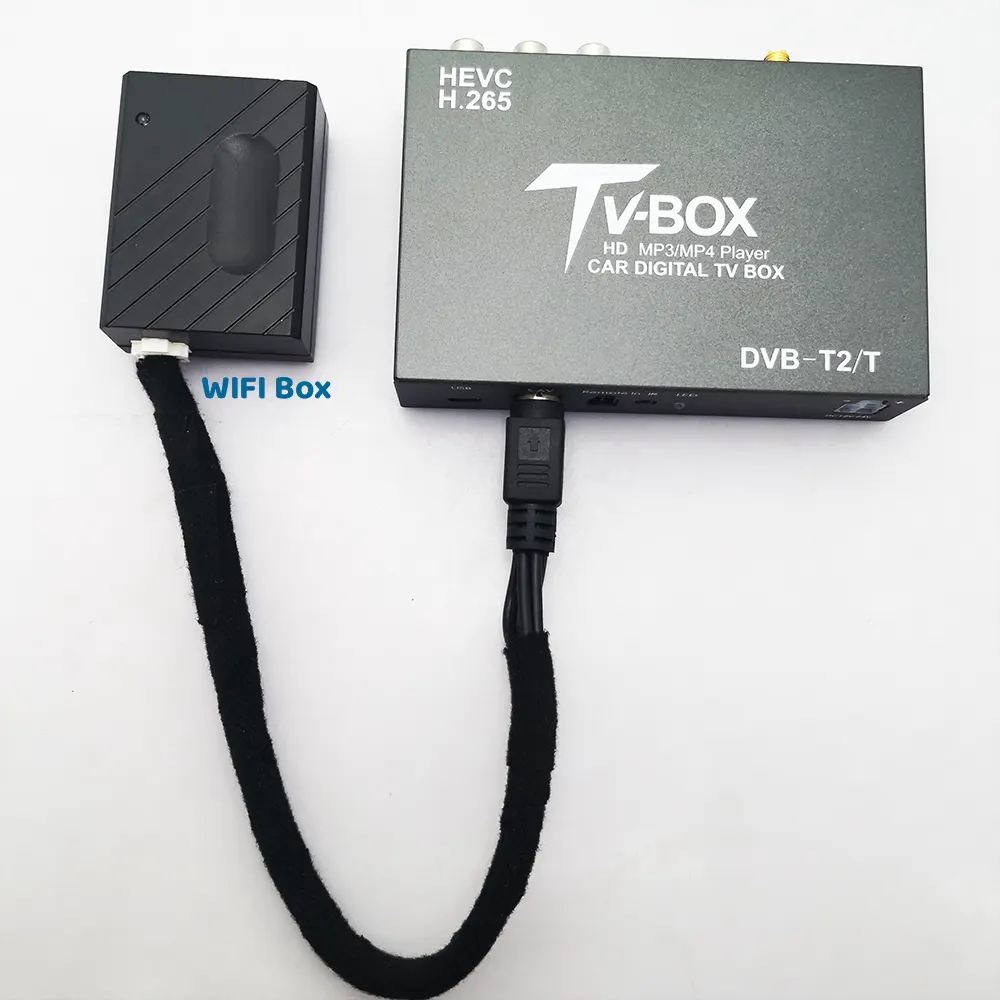

The TV mirror WiFi box function is to convert the AV output signal of the car-mounted digital TV box into a WIFI wireless signal through the TV mirror WiFi box and send the real-time TV signal to an Android mobile phone, tablet computer, Android locomotive, or Apple mobile phone and tablet, so that the TV live program can be seen without traffic while watching TV, recording programs and screenshots, and by hand. The machine realizes the functions of searching, changing, et adjusting the volume.
Realize not refitting the car to watch digital TV! Easy to install, users can install by themselves, no need to install in the refitting shop.
Let’s watch TV live at any time and anywhere. Don’t miss any exciting moments. Completely change people’s habit of watching TV live in the living room.

Caractéristiques

TV mirror wifi box features:
1. WIFI support: IEEE 802.11 a/b/g/n/; band range: 2.4-2.4835 Bande GHz
2. Support Analog Input: CVBS, LR (l'audio), Select PAL Format
3. Mobile phones, tablets, and large-screen cars that support Android. iPhone Ipad supports the IOS système.
4. Supporting two mobile phones to watch TV programs online at the same time
5. Power supply voltage: DC 4.6-5.5V
6. Working Environment Temperature: -10C Degree-70C Degree
7. Product size: 45 (H)*60 (L)*23 (W) mm

APP or APK install

1. Android version
Please use AUTOTV_2.0.01. APK application, which can be found in the catalog of U disks delivered with the products. Download and install on smart devices, support Android above 4.4 versions
of mobile phones, tablets, Android Navigator

APK Download Link

1. After installing the app, click the app to run.

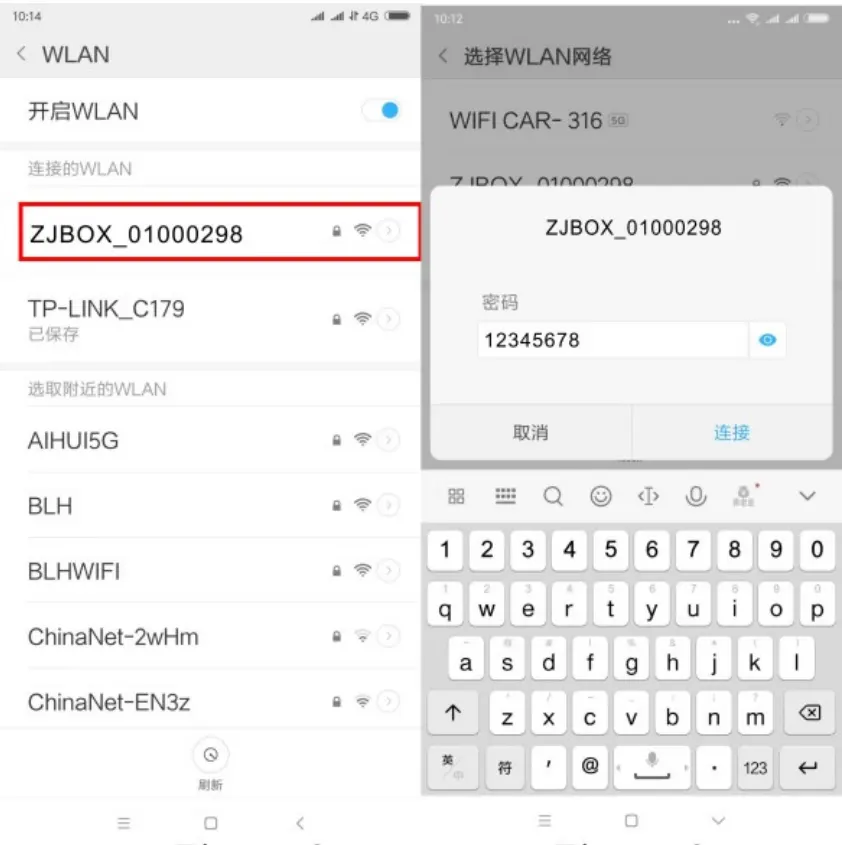

2. Enter the WIFI hotspot of automatic connection TV push treasure, click “detect WIFI”, enter the WIFI hotspot connection
3. Find the WIFI hotspot of the TV push treasure, click on it and enter the password: 12345678 to connect the hotspot.
4. After the successful connection of the WIFI hotspot, press the mobile phone’s return key and exit the WIFI hotspot’s interface. Automatically return to Figure 1 to enter the playback interface, cliquez “Suivant” to automatically enter the playback interface (Figure 4), and press the arrow in the upper right corner for full-screen playback. The trigger screen has virtual keys, which can change the station, record, screen capture, adjust the volume, and menu operation.

Note: This product needs to be used with our company’s on-board set-top box products in order to achieve the best effect of watching TV programs. Please use the product correctly. Product design specifications can not be updated without notice.

2. IOS version:
Please search “WIFITV” in the APP Store through the IPHONE IPAD device to find the corresponding file installation

Soutien 4 tuner 4 Antenna ISDB-T Japan

Soutien 2 Tuner 2 Antenna Brazil Market
