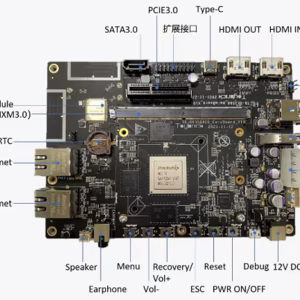

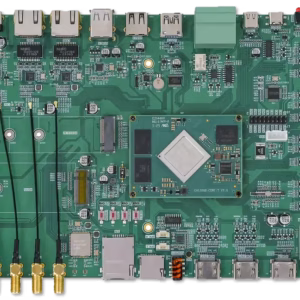

Rockchip rk3588 dev development board EVB
Tabla de contenido
RK3588 Gallery
A strong and flexible development platform for embedded applications is the Rockchip RK3588 Development Board. It is based on the high-performance, low-power, and reasonably priced Rockchip RK3588 SOC processor.
The board includes a Mali-G52 GPU, a quad-core ARM Cortex-A55 processor, and a potent NPU for AI applications. Además, it supports 4K HDR10 video playback as well as 4K video decoding and encoding. Además, the board has many I/O ports, including USB 3.0, HDMI, Ethernet, and others. Además, it supports a number of operating systems, such as Windows, Linux, and Android.
The board is ideal for developing embedded applications, such as IoT, robótica, and more. It is also suitable for prototyping and testing new products. With its powerful features and low cost, the Rockchip RK3588 Development Board is an excellent choice for embedded applications.
| processor | RK3588 | RK3588M |
| Kernel | 4 Cortex-A76 and 4 Cortex-A55 and independent NEON co-processor | 4 Cortex-A76 and 4 Cortex-A55 and independent NEON co-processor |
| NPU | Supports INT4/INT8/INT16/FP16 mixed operations, with computing power up to 6TOP | Supports INT4/INT8/INT16/FP16 mixed operations, with computing power up to 6TOP |
| Main frequency | Up to 2.4GHz | Up to 2.4GHz |
| operating system | Ubuntu/Android | Ubuntu/Android |
| Memoria | 8GB LPDDR4X | 8GB LPDDR4X |
| Electronic hard drive | 32GB EMMC | 32GB EMMC |
| DSI DREAM | 2-way MIPI DSI, maximum 4K@60Hz output | 2-way MIPI DSI, maximum 4K@60Hz output |
| HDMI OUT | 2-way HDMI 2.1, maximum 7680×4320@60Hz output | 2-way HDMI 2.1, maximum 7680×4320@60Hz output |
| eDP | 1 canal, supports maximum 2K@60Hz output, multiplexed with HDMI0 OUT | 1 canal, supports maximum 2K@60Hz output, multiplexed with HDMI0 OUT |
| DP | 1 canal, led out through Type-C interface, supports up to 7680×4320@30Hz output | 1 canal, led out through Type-C interface, supports up to 7680×4320@30Hz output |
| MIPI CSI | 4 canales, each channel supports 4 lanes, 2.5Gbps/Lane | 4 canales, each channel supports 4 lanes, 2.5Gbps/Lane |
| HDMI IN | 1 HDMI 2.0, 4 lanes | 1 HDMI 2.0, 4 lanes |
| HOURS | 1-way SATA3.0 hard disk interface | 1-way SATA3.0 hard disk interface |
| TF card | 1 way TF card interface | 1 way TF card interface |
| USB2.0 Host | 3-way USB2.0 A port | 3-way USB2.0 A port |
| USB 3.0 Host | 1-way USB3.0 full-function A port | 1-way USB3.0 full-function A port |
| Type-C | 1 channel full-featured Type-C, supports DP output | 1 channel full-featured Type-C, supports DP output |
| Ethernet | 2-way Gigabit Ethernet | 2-way Gigabit Ethernet |
| WiFi | 1 way WiFi6 | 1 way WiFi6 |
| Bluetooth | 1 channel Bluetooth 5.0 | 1 channel Bluetooth 5.0 |
| PCIE3.0 | PCIE3.0*2, led out through the M.2 M-Key interface, can be inserted into the computing power card and M.2 solid-state drive | PCIE3.0*2, led out through the M.2 M-Key interface, can be inserted into the computing power card and M.2 solid-state drive |
| 4G/5G | 1 channel M.2 B-Key interface, communicates through PCIE2.1 and USB 2.0 signals, can be plugged into 4G and 5G modules | 1 channel M.2 B-Key interface, communicates through PCIE2.1 and USB 2.0 signals, can be plugged into 4G and 5G modules |
| microphone | 1-way onboard microphone | 1-way onboard microphone |
| trumpet | 2 channels 3W/4Ω, support left and right channels | 2 channels 3W/4Ω, support left and right channels |
| earphone | Standard 3.5mm headphone jack | Standard 3.5mm headphone jack |
| RS485 | 1 channel RS485 | 1 channel RS485 |
| RS232 | 1 channel RS232 | 1 channel RS232 |
| relé | 1 relay output | 1 relay output |
| RTC | 1 way, onboard rechargeable coin cell battery | 1 way, onboard rechargeable coin cell battery |
| UART | 2 way | 2 way |
| ADC | 4 canales, resolution 12bit, sampling rate 1MS/s | 4 canales, resolution 12bit, sampling rate 1MS/s |
| 2do | 1 way | 1 way |
| GPIO | 2 way | 2 way |
| Debug serial port | 1 way, led out through Type-C socket | 1 way, led out through Type-C socket |
| Cooling fan FAN | 1 canal, 12V drive output, supports speed detection | 1 canal, 12V drive output, supports speed detection |
| indicator light | 1 power indicator light, 1 system indicator light | 1 power indicator light, 1 system indicator light |
| button | 1 reset button, 1 LOAD button, 1 Maskrom button, 1 PWRON switch button | 1 reset button, 1 LOAD button, 1 Maskrom button, 1 PWRON switch button |
| watchdog | Supports external hardware watchdog | Supports external hardware watchdog |
| Supply voltage | DC 12V voltage input | DC 12V voltage input |
| Mechanical Dimensions | 220mm (length) *160mm (width) | 220mm (length) *160mm (width) |
| Environmental testing | 0℃ ~ +70℃ | -40℃ ~ +85℃ |
The processor is the core component of the computer hardware system, and its performance improvement plays an important role in device functionality and user experience. The processor is also the core of the development board, which determines its computing performance and graphics performance. Entonces, what grade does the RK3588 processor belong to? What is its performance and market positioning?
Primero, let’s take a look at the performance of the RK3588 processor. RK3588 is the latest eight-core flagship chip launched by Rockchip. It adopts ARM architecture and integrates quad-core Cortex-A76 and quad-core Cortex-A55, as well as a separate NEON co-processor. It is equipped with an embedded ARM Mali G610 3D GPU and supports OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2 and Vulkan1.2, the built-in NPU supports INT4/INT8/INT16/FP16 mixed operations, with a computing power of up to 6TOPS. This configuration makes the RK3588 processor perform very well in terms of processing speed and graphics processing capabilities. Al mismo tiempo, it supports 8K video encoding and decoding, can handle multiple video formats, and can provide users with a high-definition, smooth, and good viewing experience. Taken together, the RK3588 processor is at a relatively high-end level in terms of performance.
Secondly, let’s take a look at the market positioning of the RK3588 processor. Due to its high computing power, super multimedia, rich data interfaces and other characteristics, as well as its excellent performance in hardware performance, image quality display, decoding capability, scalability, AI performance, etcétera, RK3588 can be used in PCs, edge computing devices, Personal mobile Internet devices and other digital multimedia applications, etcétera, these fields have higher requirements for processors and need to provide stable performance and low power consumption processors to support various functions and applications, and RK3588 can undoubtedly meet the requirements of such high-end applications. need. Al mismo tiempo, due to its rich functional interfaces, RK3588 can meet the product customization needs of different industries.
en adición, RK3588 supports 8K@60fps video decoding and output. When applied to smart hardware, the image is more high-definition and more delicate, and can even easily handle high-end visual presentation technology with interactive functions in AR/VR. For game enthusiasts, the powerful video encoding and decoding capabilities allow the picture to be presented in 8K high-definition, which can provide game enthusiasts and movie viewers with a complete 8K visual experience, meet the ultimate needs of game enthusiasts for extremely clear visuals, and play easily Popular games such as “Honor of Kings”, “Cross Fire Mobile Game”, y “QQ Speed Mobile Game”.
Solicitud
Our RK3588 development board can be widely used in ARM cluster servers, edge computing, video codecs, vehicle electronics, PCs, y otros campos, as well as in many fields such as intelligent transportation, smart medical care, machine vision, and smart communities.
Technical advantages
- ·High performance processor
It uses an eight-core CPU processor composed of quad-core Cortex-A76 and quad-core Cortex-A55, with built-in NPU, providing 6TOPS computing power.
- ·48 million pixel ISP image processor
The introduction of a new generation of 48-megapixel ISP3.0 can achieve lens shading correction, 2D/3D noise reduction, sharpening and defogging, fisheye correction, gamma correction, wide dynamic contrast enhancement and other effects, greatly improving image quality.
- ·Rich displays, peripherals and expansion interfaces
RK3588 has rich display and peripheral interfaces, supports multi-screen differential display, supports HDMI, CSI RX, supports PCIE3.0, SATA3.0, dual TypeC/USB3.1 and other high-speed interfaces, supports industry-leading LPDDR5, and has high-speed performance 4-channel external memory interface.
- ·Powerful video encoding and decoding capabilities
Supports high-definition decoding of multiple formats such as H.264/H.265/VP9/VP8, real-time H.264 and H.265 video encoding, and supports up to 8K@60fps.
Preguntas más frecuentes
Pregunta: Can you offer me Rockchip’s official EVB board, the black one with LCD?
Responder: Rockchip’s official EVB board needs USD****.
Pregunta: Can you help me get access to these SDKs for RK3588, Android12.0, Linux, Edge, NVR, IPC?
RK3588_ANDROID12.0_SDK
A pure version of the Android system based on Android 12 source code, mainly suitable for set-top boxes, tablets, smart screens, video conferencing all-in-one machines, and other products.
RK3588_LINUX_SDK
The open-source Linux system can compile Debian, Yocto, and build root, which is suitable for customers to adjust the system environment according to their own usage scenarios.
RK3588_LINUX_EDGE_SDK
SDK for Al applications, suitable for machine vision application scenarios such as robots, UAV, assisted driving, and autonomous driving.
RK3588_LINUX_NVR_SDK
Suitable for smart security applications, such as multi-channel video decoding, multi-channel video encoding, multi screen splicing display, video analysis, y otras aplicaciones.
RK3588_IPC_SDK
Suitable for developing camera products, such as security cameras, panoramic cameras, 8K cameras and other products.
Responder: Lo siento, we can not offer you no these files now. They need another authorization fee, almost USD*****)
