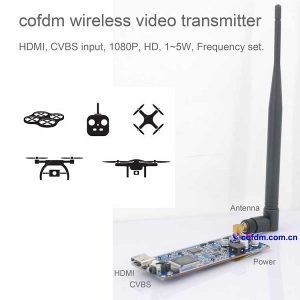

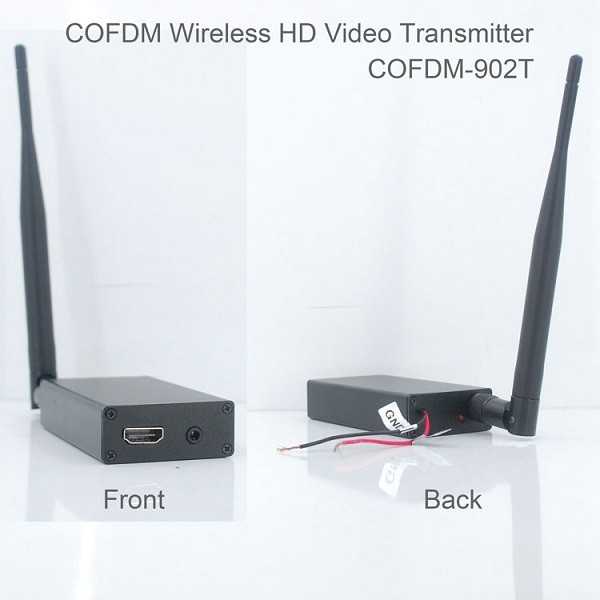

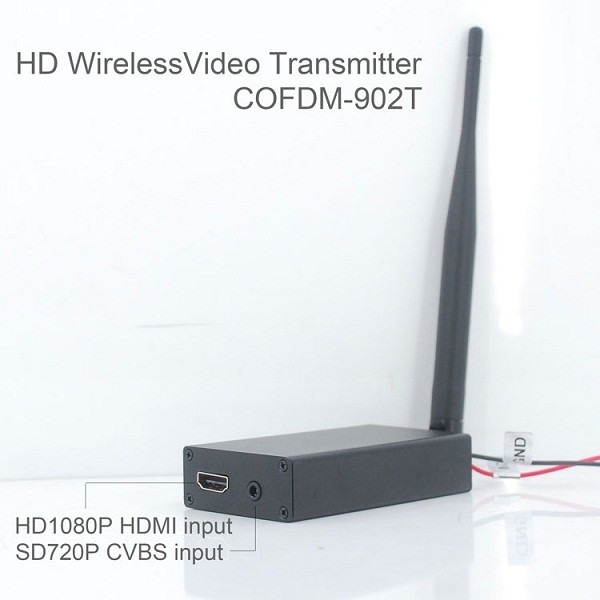

wireless HDMI AV transmitter-receiver
Récepteur émetteur vidéo sans fil COFDM HDMI AV pour caméra 1080P CVBS SD 720P COFDM-902T
Table des matières
Points de vente
1～2W RF output;
HD 1080P, SD720P composite CVBS in
H.264/MPEG-2;
Retard <500MS;
100mm×43mm×10mm, 0.2kilos
Caractéristiques du produit
Working frequency can be adjusted from 170MHz ~ 930MHz
Video Audio interface: HDMI digital interface and analog CVBS composite inputs (_SDI input is coming soon)
High-quality digital video processing and H.264 / MPEG-2 video codec, HD quality
Very short coding delay of 500 millisecondes
High-speed mobile and multi-path interference stable transmission of images, vidéo
Powerful NLOS capability
Having space diverse reception
With encryption
Default 1W transmit RF power, Develop different 1~2W
Selon les exigences du client, OEM or ODM is customized
spécification
| Working frequency | 170MHz ~ 900MHz, be customized |
| Méthode de modulation | COFDM |
| RF Output power | 1~2W can develop more power |
| Bande passante | 6/7/8MHz |
| Le chiffrement | AES / AES2 / DES / DES2 |
| intervalle de garde | 1 / 32,1 / 16,1 / 8,1 / 4 |
| Technical standards | H.264 / MPEG-2 |
| Flux vidéo | 2Mbps ~ 25Mbps |
| System delays | <500MS |
| BER | ≤10-6 |
| Distance de transmission | 1 ~ 10km |
| Format de compression | H.264 / MPEG-2 |
| Entrée vidéo | HDMI, Analog CVBS video, and audio |
| Entrée audio | Stéréo, Droite + Gauche |
| Image definition | 1080P/I (1920×1080) is compatible with 720P, 480P and SD @ frame rate of 25 frames / seconde. |
| Interface d'entrée vidéo | 3.5 prise casque mm, HDMI |
| Audio input interface | 3.5 prise casque mm, HDMI |
| Alimentation | VCC6V ~ 40V |
| Dimensions | 100mm × 43mm × 10mm (L × W × H) |
| Poids | 0.2kilos |
