- Proceso de dar un título: NINGUNO
- Origen: CN(Origen)
- tipo de material: Abdominales
- Cámara de visión trasera de estacionamiento para uso de luz de freno Mercedes Sprinter VW Crafter: El plastico
- Poder: máx: 50MAMÁ, 12V.
- Señal del sistema: CAMARADA / NTSC
Funciones:
-
1. Vista frontal automática al mirar:
Cuando se arranca el motor, el sistema activa la máquina de monitoreo y la cámara frontal para verificar la vista frontal para 8 segundos y luego lo apaga.
- 2. Vista trasera automática:
- 3. La vista frontal siempre activa el modo:
Presione el interruptor de control para ingresar al modo frontal.
en este modo, el sistema monitoreará y activará el frente de la cámara en todo momento.
Salga del modo presionando el interruptor de control nuevamente.
prioridad de trabajo: Vista trasera > Vista frontal
cámara de vista frontal: presentado por el sistema de control remoto.
Cámara trasera: presentado por el sistema de control o puede ser activado por estar en reversa.
Especificación:
-
Poder: máx: 50MAMÁ, 12V.
-
Señal del sistema: CAMARADA / NTSC
-
Salida de vídeo: 1.0VPP / 75ay
-
Temperatura de funcionamiento: -20℃ a 80 ℃
Paquete incluido:
-

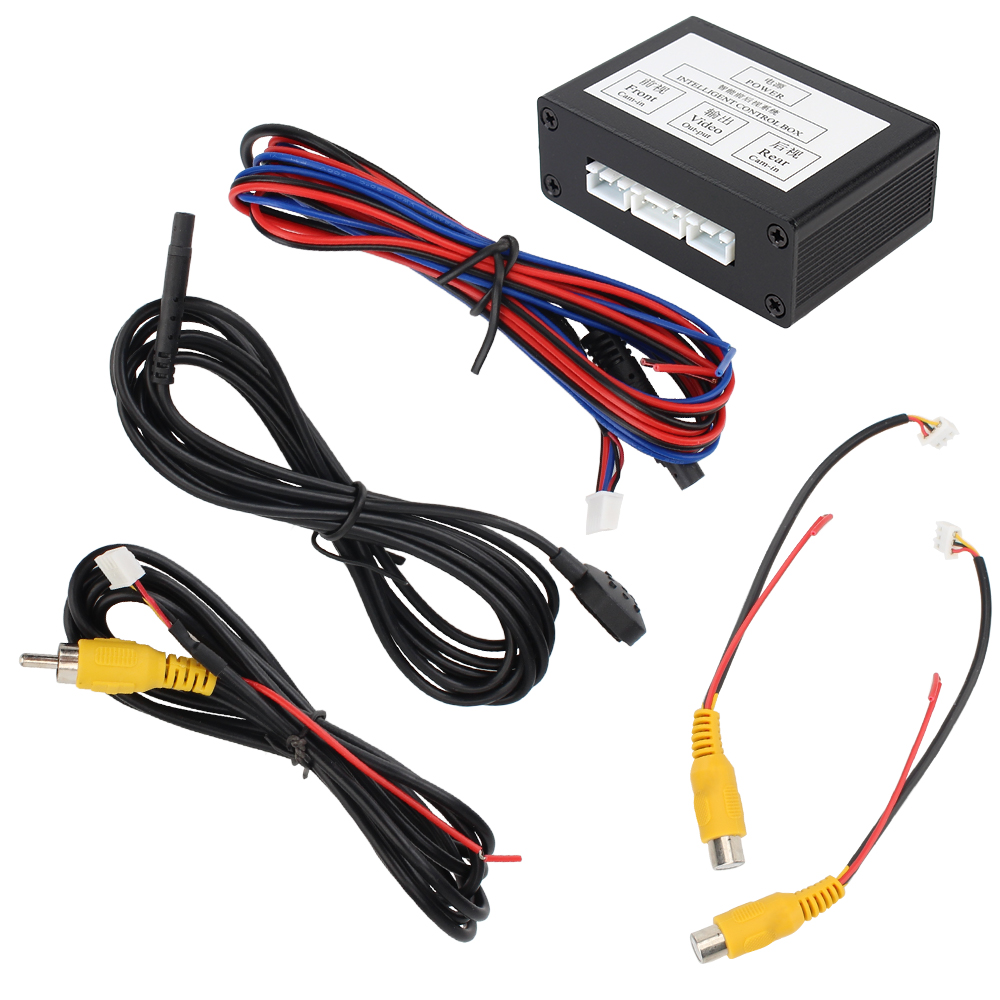

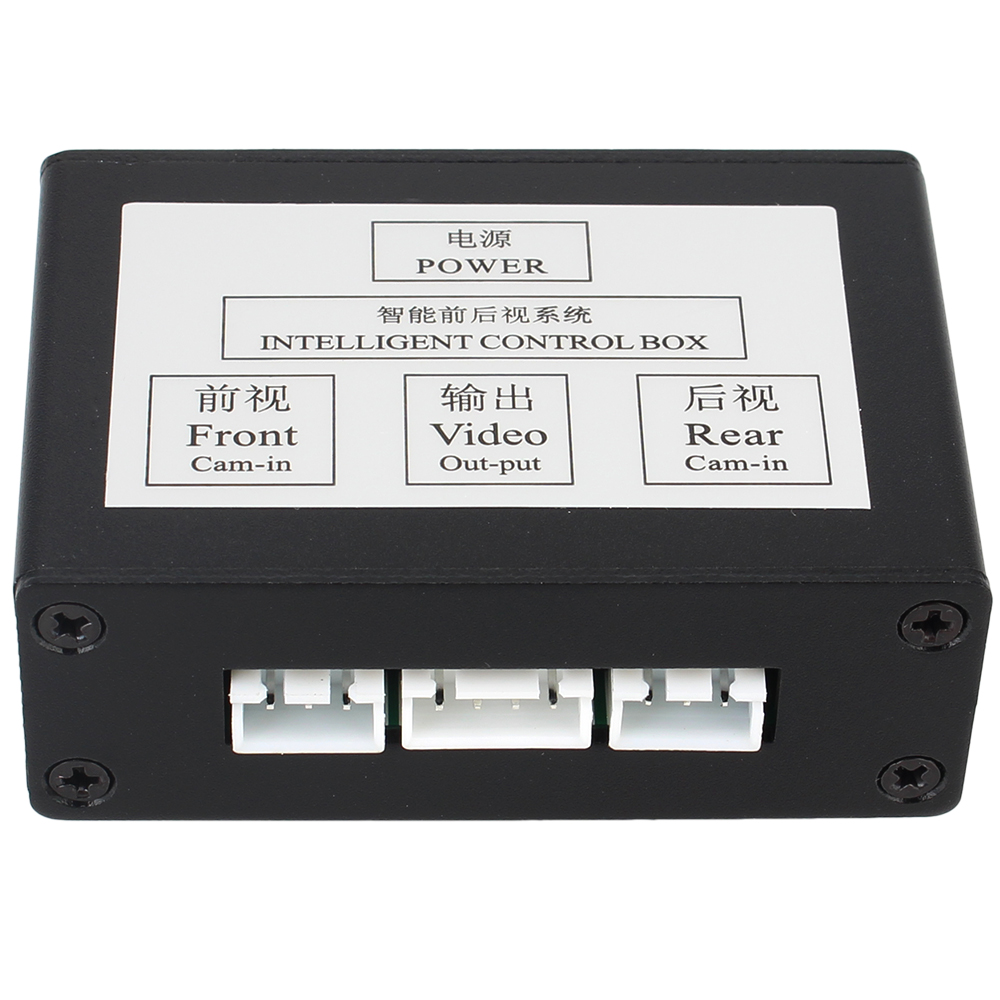

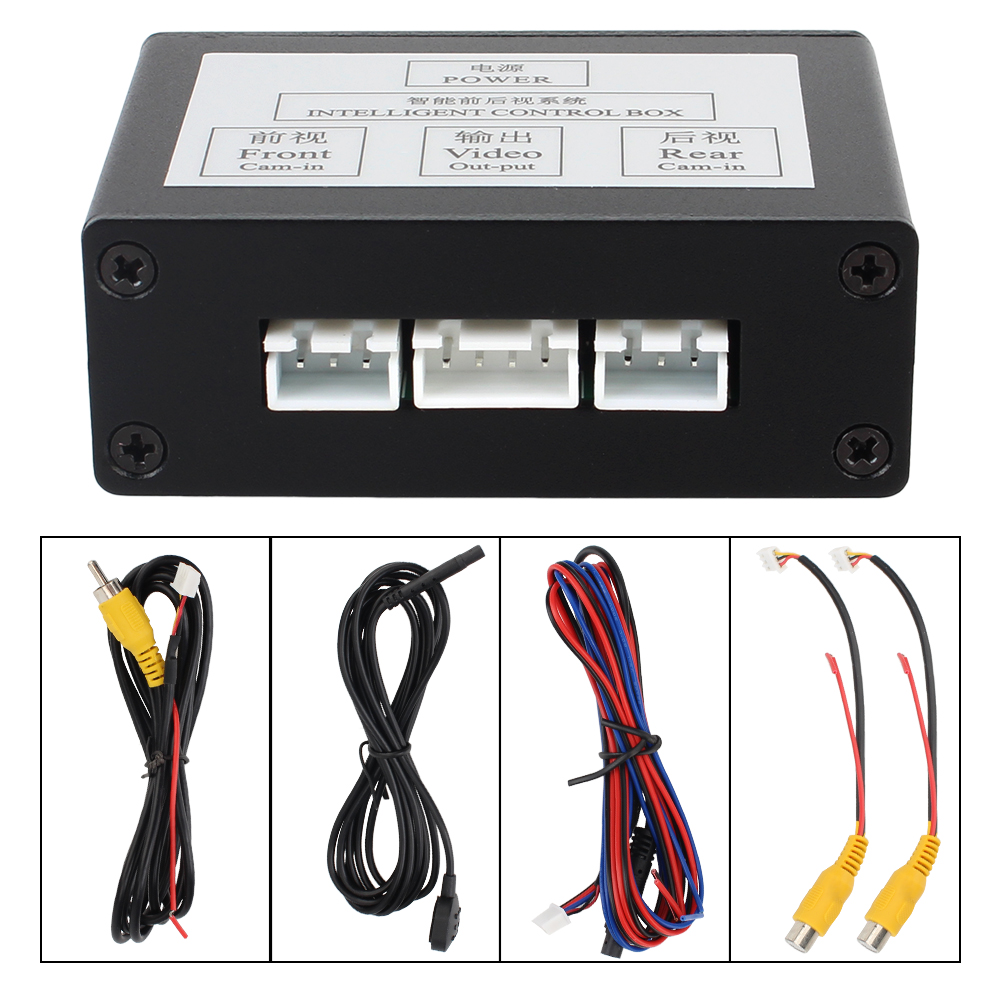

1 x Sistema de control de video de cámara de estacionamiento
-
Vídeo de prueba en Youtube
https://youtube.com/shorts/8OY5o8SGN8Q
Preguntas más frecuentes

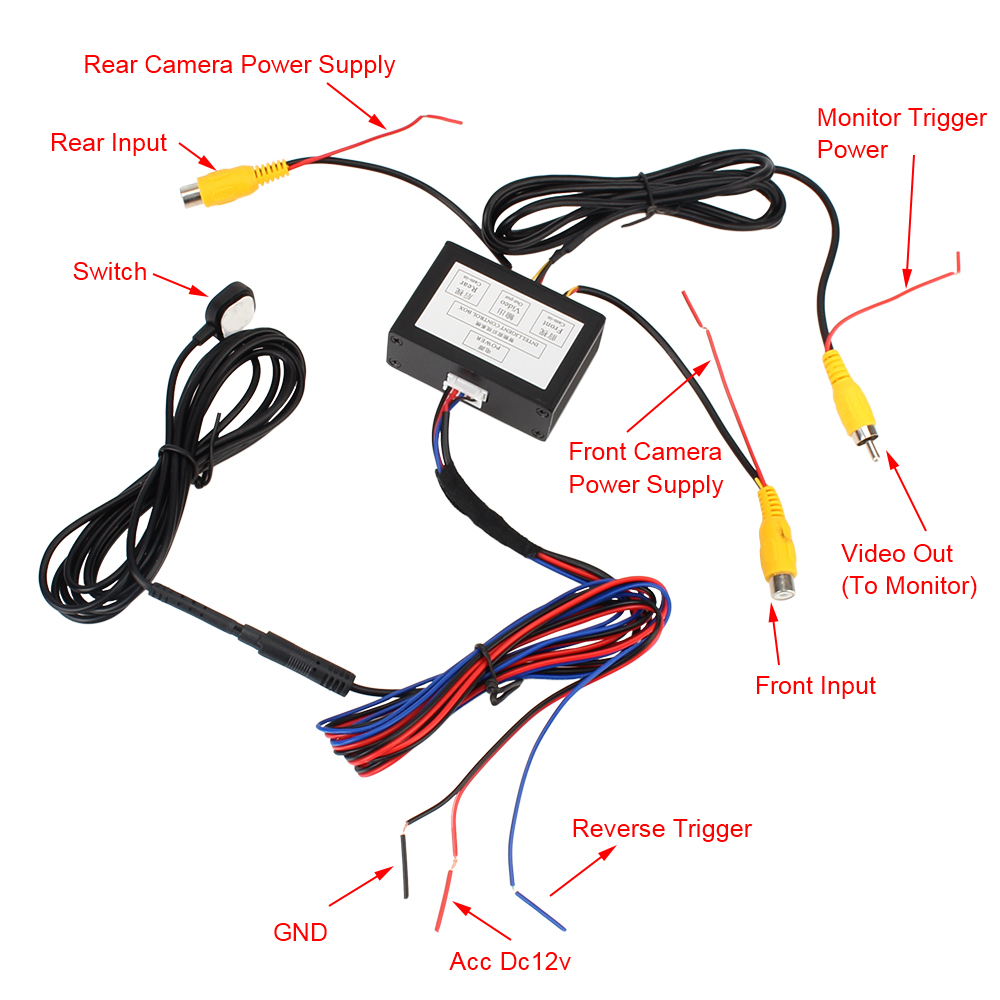

Pregunta 1: This box gets Acc dc 12v, GND…if I connect a front and a rear camera, how do they get Acc dc 12v, GND? For example front gets it from the box front input and the Acc DC 12v from the red cable, and how is GND? It may be included in the yellow Front input. Or I’m completely wrong and I have to connect separately for the front and rear camera their own Acc dc 12v, GND!?
Responder: The GND wire of the camera can be connected to the GND wire of the car lights or any wire that is drawn from the black wire of the battery, and can be connected anywhere on the car. The GND wires on the car are all connected together.
