We can modify the frequencies of both flat panel and omnidirectional antennas to match the frequencies of your drone video and data transmitters and receivers.

The gain of a flat panel antenna may increase or decrease depending on the frequency.

Video for How To install this antenna

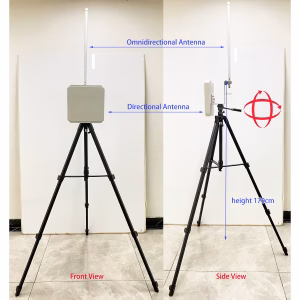

Steps for installing directional and omnidirectional integrated antennas

1. Place a tripod.
   • The tripod legs should be unlocked and withdrawn. All three legs should be locked. Expand the bracket; the upright bracket should be placed on flat ground and locked.
2. Install the steering handle.
   • The handle threaded hole is aligned with the tripod screw, Rotate the handle clockwise, Until tightened.
3. Install the directional antenna
   • The nut gasket is placed on the screw. Align the screw hole of the adapter version with the screw of the antenna. Align the nut hole with the screw, Tighten the nut with a wrench.
4. Mount omnidirectional antenna
   • The antenna fixing ring is locked on the fixed plate track, Pass the bottom of the omnidirectional antenna through the fixing ring, and reserve a little space.
5. Installation antenna feeder
   • Pass the feeder connector through the adapter plate hole, Connect to the antenna connector, Tighten the feeder connector, and Tighten the nut that holds the antenna.
6. Install the antenna on the tripod
   • Align the adapter plate base with the steering gimbal rail, Insert and lock.
7. Rotation directional antenna direction
   1. Unscrew the vertical and horizontal fixing locks for the steering gimbal

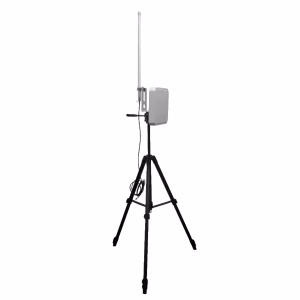

   2. Hand grip, Directional antenna direction can be adjusted horizontally, The handle can be adjusted vertically up and down, And towards the elevation angle of the antenna.
