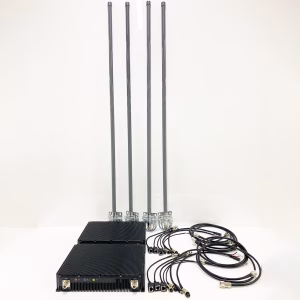

Нядаўна хуткасць перадачы перадачы відэа і прыёмнік 100 Мбіт / с на адлегласці 100-150 км 2х10 Вт ПА

перавага

Max 100Mbps

Supports connecting 8 IP камеры, each with 1080P resolution. Each camera requires an average of 2M~3Mbps. Even if real-time videos of 8 cameras are transmitted at the same time, it requires about 16M~24Mbps, which can be easily handled by this model.

3X RJ45 for IP camera

Both the aerial unit and the ground power supply have three RJ45 interfaces. The aerial unit can be connected to an IP camera, the ground unit can be connected to a computer running Misson Planner or QGroundControl, and can be connected to an RTSP player running 8 вокны. It supports converting the serial port data of the flight control to the network port data (UDP or TCP protocol).

(we can offer you the UDP setup video guide)

One RJ45 can connect more IP devices if use ethernet router.(сеткавы камутатар)

Максімальная падтрымка 64 вузлы

Support one point to one point networking, support one point to multi-points and repeater networking.

Ground Unit supports to connect computer or NVR

As computer supports to run RTSP player or IP camera’s application. As the RTSP player, it supports to play 4, 8, 9 або 16 windows to play the IP camera.

Frequency hopping function to avoid interference

Fully automatic frequency hopping function, automatically compares and selects the frequency with the least interference as the operating frequency.

• Мы распрацавалі гэтую бесправадную перадачу відэа і даных з узыходзячай і сыходнай лініяй сувязі для тых, каму патрэбна функцыя аўтаматычнага пераскоку частоты.
• З тэхналогіяй пераскоку частоты (Гэтая мадэль была распрацавана для бесправадной перадачы відэа і даных з двухбаковым бесправадным каналам перадачы дадзеных) каб забяспечыць лепшую стабільную сувязь сігналу, калі бягучая частата сігналу горш, сістэма аўтаматычна зменіць працоўную частату на іншую для лепшага сігналу.
• Гэты двухнакіраваны радыёмодуль OFDM можа працаваць у дыяпазоне ад 566 МГц да 678 МГц або ад 1420 МГц да 1530 МГц.. Такім чынам, дыяпазон частот мае змену або скачкападобную паласу частот 110 МГц. Калі вы ўсталюеце паласу частот на 10 МГц, тады ёсць 11 кропкі частаты для скачкападобнага пераскоку.

асаблівасць

1. The system facilitates the simultaneous downloading and uploading of video data, enabling bidirectional transmission.
2. This is a TDD OFDM full-duplex IP mesh radio wireless transceiver module that’s designed for both video and data transmission.
3. This device features dual radio frequency power, with each of the two channels outputting 24 plus or minus 1 дБм.
4. The sensitivity is measured at -102dBm for a data rate of 1Mbps with a bandwidth of 20MHz.
5. The system’s support for transmission distances ranges from 500 у 2000 meters in ground-to-ground communication and from 5km to 150 kilometers in unmanned aerial vehicle (БЛА) to ground communication. (2Вт, 5Вт, 10Вт)
6. The device includes three wireless, transparent transmission Ethernet RJ45 ports, one wireless, transparent transmission serial port for rs232 UART data links, and a single configuration serial UART (TTL) port for ease of setup and configuration.
7. This device has dual antennas, a main antenna and an auxiliary antenna, that offer flexible configuration options: dual transmitting and dual receiving, адзіная перадача і двайны прыём, or single transmitting and single receiving modes are all possible.
8. This device supports operation within the wireless working frequency bands ranging from 566 у 678 МГц, as well as from 1420 у 1530 МГц.
9. This device is capable of automatically switching between and within frequency bands, supporting a frequency hopping range up to 110Mhz.
10. The wireless bandwidth is configurable across a range of options, including 1.4MHz, 3МГц, 5МГц, 10МГц, 20МГц, and 40MHz, allowing for a maximum air interface rate of up to 100Mbps.
11. The modulation method used is adaptable and automatically selects from QPSK, QAM16, or QAM64, depending on the conditions.
12. This system is designed to support the encryption and decryption of data transmitted wirelessly.
13. This device is capable of supporting wireless ad hoc networks using a mesh communication method, allowing for the connection of up to 32 nodes within the network.
14. Because all node communications share the same working bandwidth, the system’s maximum sharing rate is limited to 100 Mbps. System rates should be distributed adaptively in an equal manner to ensure fairness and efficiency across all system components.
15. This system is capable of supporting a multi-hop routing topology with a maximum of 32 вузлы, allowing for routing paths of up to 31 хмель. The system supports fixed route configurations, and once implemented, these configurations remain permanently in effect.
16. This model supports a maximum moving speed of up to 300 кіламетраў у гадзіну.
17. This particular board has been designed with, and thus supports, the Morningcore mCX6779K modem at its core.
18. Формула індэкса аднабаковай затрымкі(Спадарыня): 6*H + (5/2) * N/2 * H * 3, двухбаковая затрымка, памножаная на 2（N - гэта колькасць вузлоў у двух скачках, колькасць скачкоў H). Аптымізаваная затрымка паміж двума вузламі: Аднабаковая затрымка паміж двума вузламі≤10 мс; Затрымка аптымізацыі ланцуга з чатырма вузламі: з чатырма вузламі з трыма скачкамі з адным скачкам у адзін бок затрымка≤10 мс； 6 Кропкавая сетка,3 скакаць, затрымка ў адзін бок 50 мс；8 кропак, адзін скачок для ўсіх балаў, затрымка ў адзін бок36 мс；8 кропак, serial7 хоп, затрымка ў адзін бок 170 мс；32 кропак, адзін скачок для ўсіх балаў, затрымка ў адзін бок 120 мс；32 кропак, serial31 Аднабаковая затрымка скачка3750 мс。
19. Затрымка будаўніцтва сеткі пры ўключэнні лагічнага галоўнага вузла 20-80 с(Абмежаванняў па модулях няма. ў цэлым, лагічны галоўны вузел уключаецца першым.); Халодны старт, затрымка ад запуску вузла да доступу да сеткі<30s Атрыманы сігнал лагічнага галоўнага вузла; гарачы старт, затрымка доступу да сеткі пры запуску падпарадкаванага вузла<1s(Звычайны сцэнар сеткавага вузла з адным пераходам); Гарачы старт, уключыце сілкаванне вузла з адной частаты і падключыцеся да сеткі<480Спадарыня + 160мс*Н(H - колькасць скачка).

спецыфікацыя

1. Час дывізіёна дуплекс (TDD) is a method used for implementing OFDM modulation.
2. This device is capable of supporting two distinct frequency ranges; the first is between 566 і 678 МГц, while the second is between 1420 і 1530 МГц.
3. This device has the ability to support the function of frequency hopping spread spectrum (Гэтая мадэль была распрацавана для бесправадной перадачы відэа і даных з двухбаковым бесправадным каналам перадачы дадзеных) and automatically hop between frequencies.
4. Bandwidth options include 4MHz, 3МГц, 5МГц, 10МГц, 20МГц, and 40MHz.
5. The maximum throughput for this network connection is 100 мегабіт у секунду.
6. This device boasts dual RF transmission power, operating at 24±1dBm across two channels—one for uplink and one for downlink communication.
7. The constellation for this system supports QPSK, 16QAM, і 64Qam, and it automatically adapts to the best option depending on conditions.
8. The sensitivity level is measured at -95dBm with a 20MHz bandwidth.
9. This device offers IP video data transmission capabilities and is equipped with three Ethernet ports to facilitate this function.
10. This device offers support for serial data transmission, канкрэтна, it includes one RS232 port and one TTL port for serial communication.
11. Without additional power amplification, a line-of-sight communication range of up to 22 kilometers is achievable between an unmanned aerial vehicle and a ground station, and a line-of-sight range of up to kilometers can be achieved between two ground stations.
12. To extend the range, you can increase the power output by 2, 5, або 10 Вт.
13. This system features a web-based user interface and a control UART for convenient management and monitoring capabilities.
14. Encryption using AES128 is being employed for security purposes.
15. The uplink and downlink streams need to be controlled, with the video stream requiring a higher bandwidth and the data stream needing less.
16. The networking modes supported include one-to-one peer-to-peer, one-to-many peer-to-multipoint, many-to-one multipoint-to-peer, relay/repeater configurations, and mesh or swarm network topologies.
17. The power consumption of this device is less than 7 Вт.
18. памеры: 28 х 21 x 6cm
19. The weight of the item is recorded at 4461 грамаў.
20. The permissible working temperature range for this is from -20℃ to +65℃.
21. The recommended storage temperature ranges from -40℃ to +80℃.

Sealed Housing without cooling fan

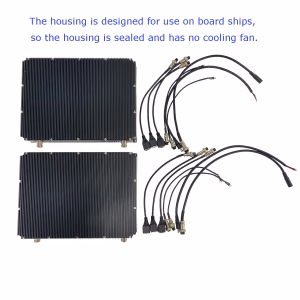

The customer required the housing to be designed for use on board and to be waterproof, so the housing is sealed and has no cooling fan.
