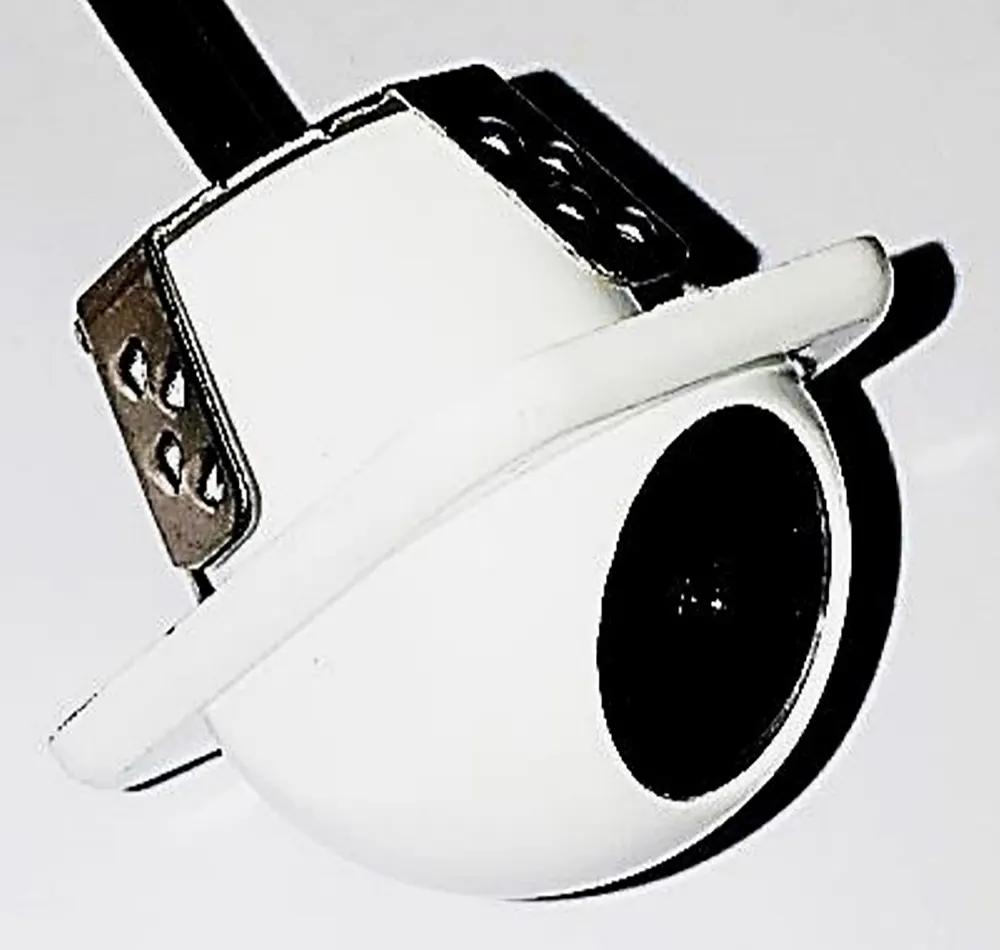

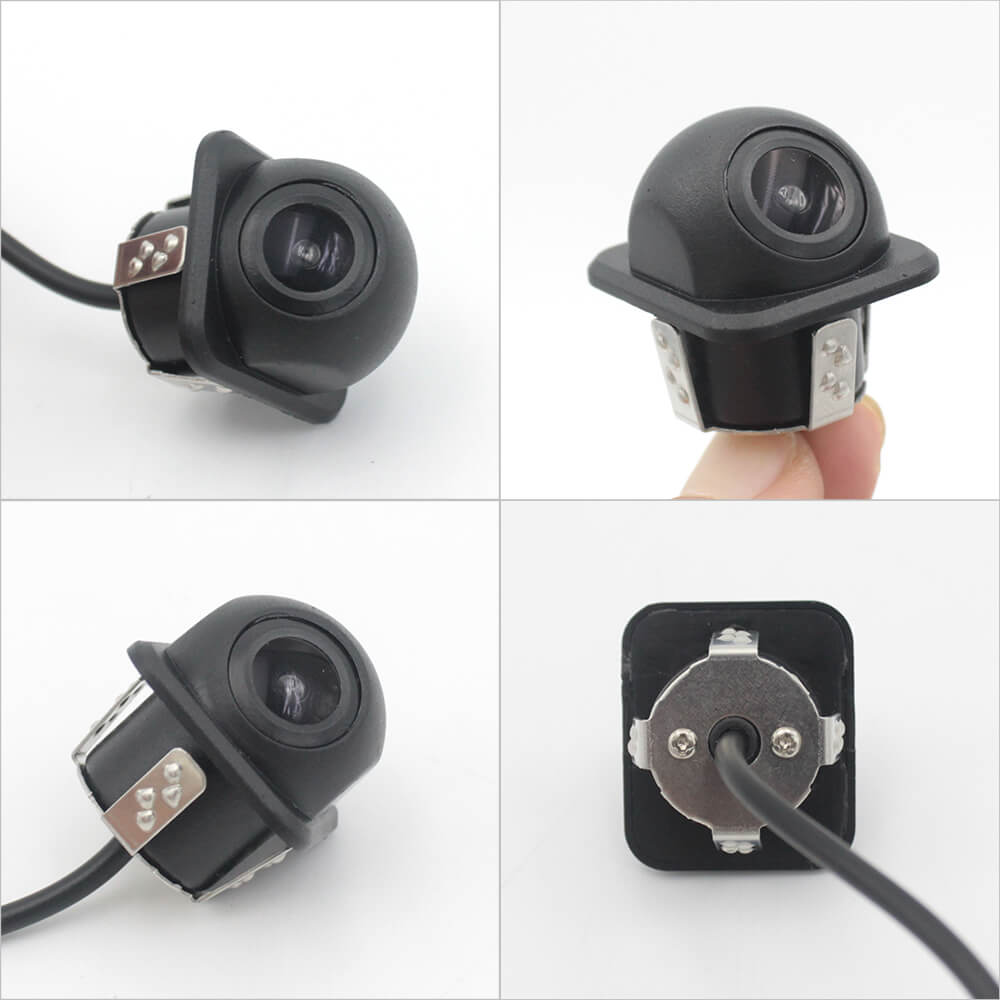

small straw hat rearview camera
маленька камера заднього виду в солом'яному капелюсі з 3 вмикає/вимикає розрізаний кабель для паркування, увімкнення/вимкнення горизонтального дзеркала, увімкнення/вимкнення вертикального дзеркала
3 wire as a switch to keep or remove the mirror left/right, guideline on/off, and up/down function
Зміст
Особливість

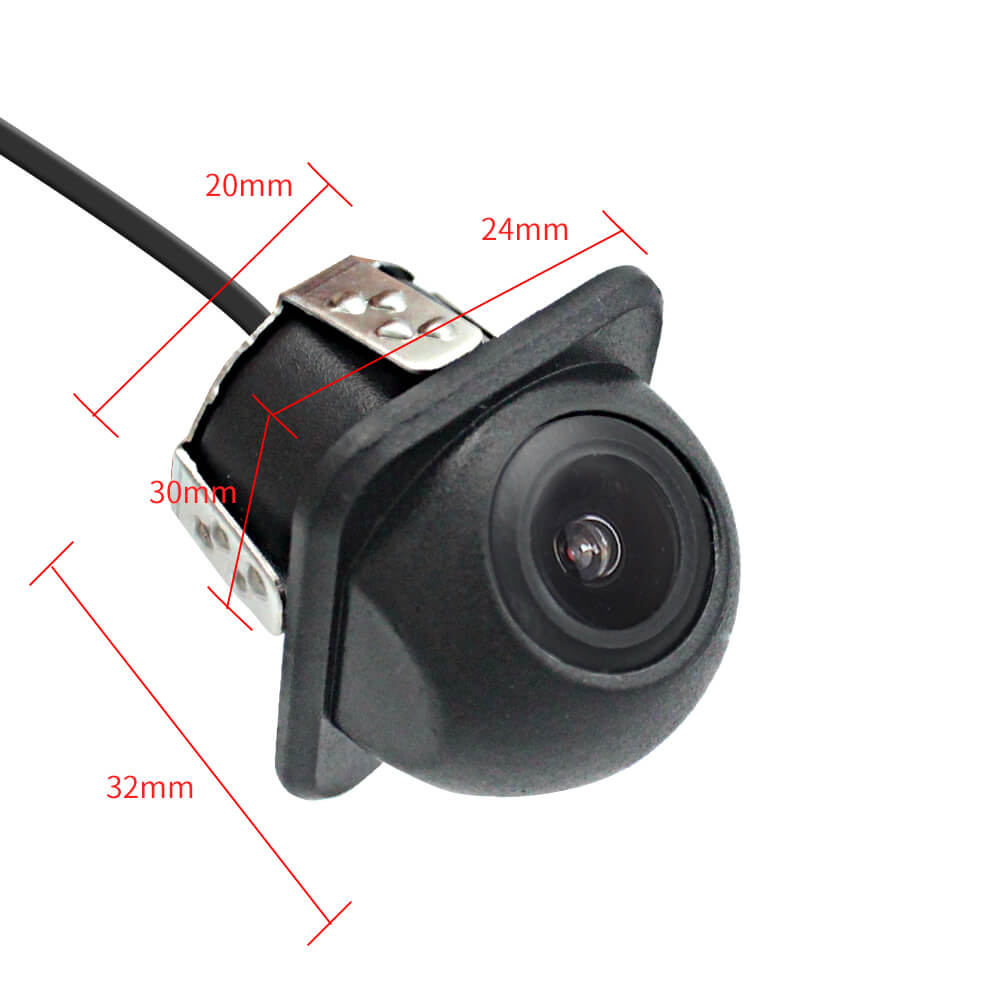

The newest Mini Design has only 20mm body size, 170° wide-angle viewing, built-in PC1089 Sensor with 762H*504V Effective Pixels, і 520 TV Lines, which has better clarity, color contrasting, and sharpness than the PC7070 Camera.
- Портативний, Anti-shock, Anti high Temperature, and Humidity
- Sync System: Internal
- Automatic White Balance: Так
- Відеосистема: NTSC / ДРУГ
– Reversing Guard Line: Так, can help you to estimate the distance while reversing.
специфікація
- Ефективні пікселі: 762H*504V
- Resolution: 520 TV Lines
- Кут об'єктива: 170°
- Водостійкий: IP68(8 hours in water tested)
- Співвідношення S/N: 46.4db
Dynamic Range: 63.7db - Електронний затвор: 1/50(ДРУГ)~1/10000s
- Image Pipeline Features: Auto exposure, AWB (Automatic White Balance), AGC (Автоматичне регулювання посилення), Auto flicker detection and cancellation
- Mini Illumination: 0.01Lux
- Відеовихід: RCA connector, 1.0Вп-п, 75ом
- RCA Video Cable: 6M
- Power Supply: DC 12 В±10%
- Operating Temperature: -20℃~+75℃ RH95% Max
- Storage Temperature: -40℃~+85℃ RH95% Max
- Other: 16.5mm Hole Saw as a gift included

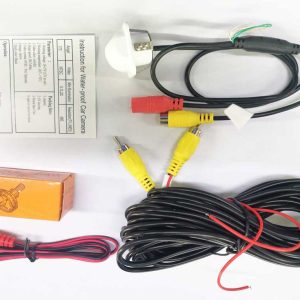

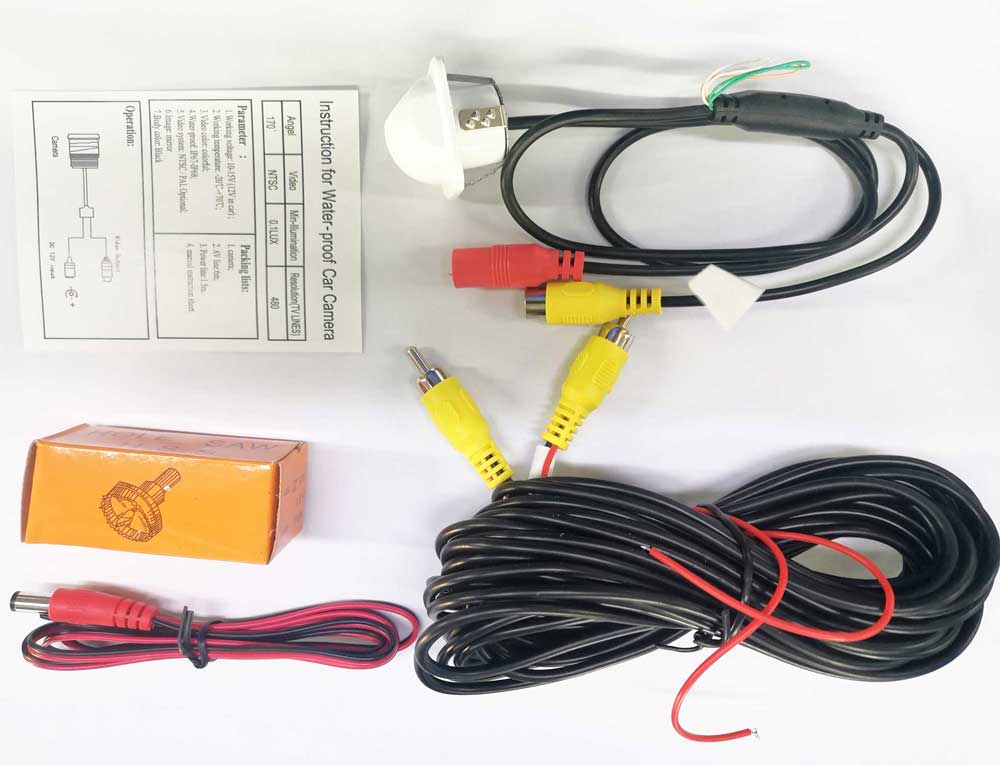

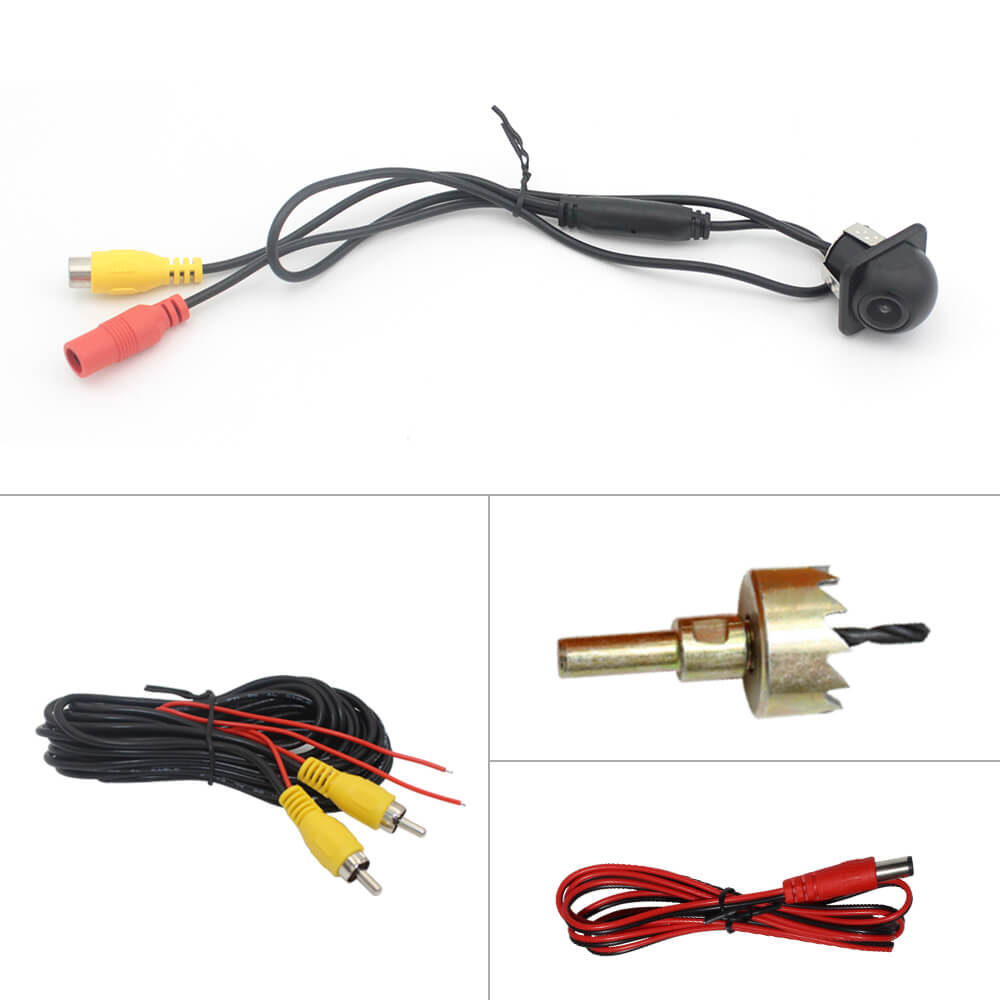

Пакет:
– 1 * Mini HD Small Straw Hat Camera
– 1 * 5M Video Cable
– 1 * 1M Power Cable
– 1 * Hole Saw
– 1* User’s Manual in English

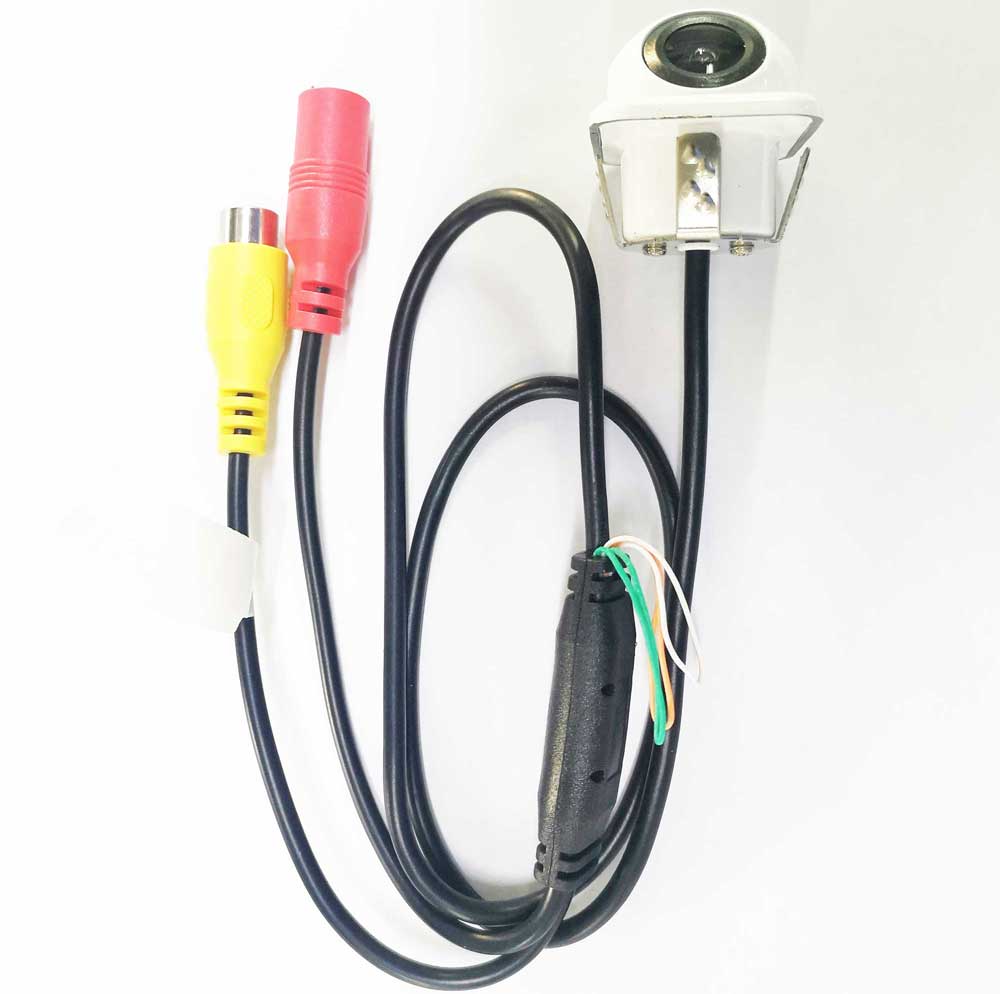

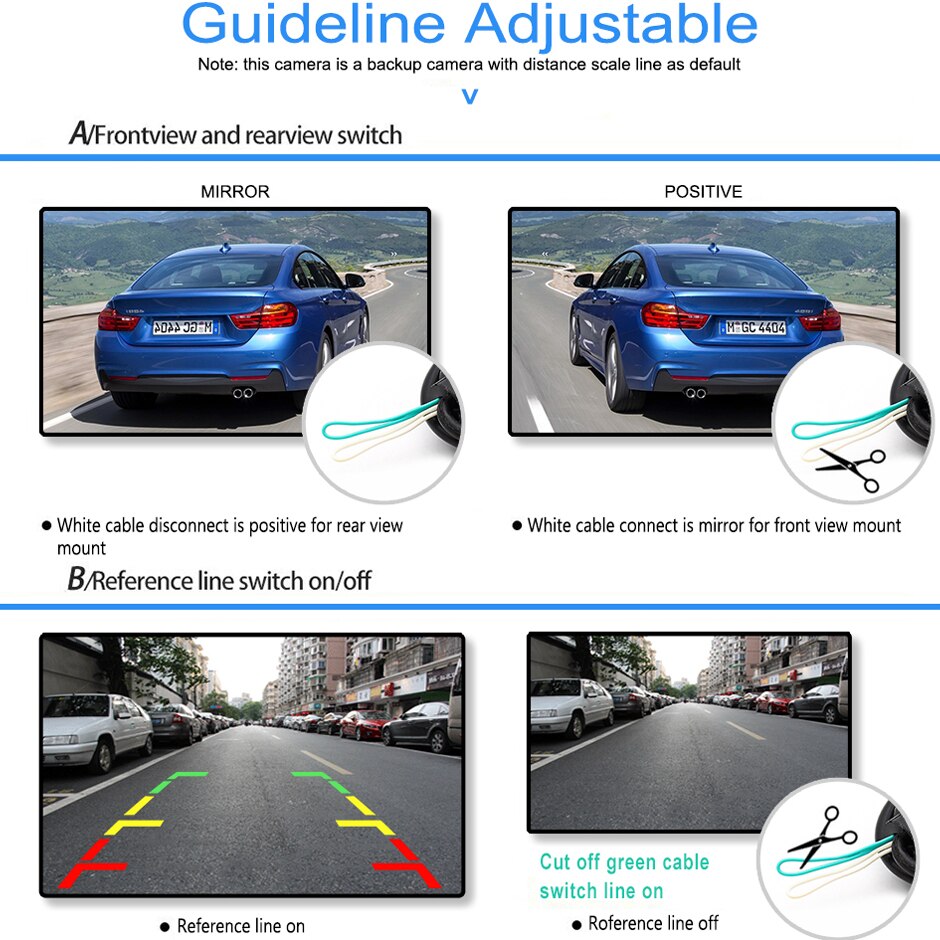

Three switches cuttable cable function:
- White cable for horizontal mirror on/off
- Green for parking guideline on/off
- Orange for front or rear install switch Vertical mirror on/off
Q1: What difference between CVBS and AHD cameras?
A1: Будь ласка, перевірте тут.
The viewing angle of the reversing camera on the car is very important. The larger the angle, the larger the viewing area that can be observed behind the car.
But it does not mean that the bigger the better, because when you exceed 150 ступенів, the picture in the entire rear view area is called a fisheye shape, which is convex and distorted. So how do we test the viewing angle of the camera? This short video shows how we measure the viewing angle of the car rearview camera.
On an A4 paper with different angles printed, we put the camera on the center line of the vertex of the angle, put yellow boxes on the two extension lines of the angle as signs, and gently push the camera forward, в 150 degrees When viewing the angle, you can also see the marks made by the yellow boxes on both sides of the screen, so it means that the maximum viewing range of the current camera is 150 ступенів.
