200m Wireless HDMI Transmitter and Receiver 2.4G 32ms latency 200 meters distance Vcan1480
Зміст
Особливість
| Low Latency | 32ms Latency, the lowest latency WiFi-based HD solution in the market |
| High Video Quality | До 1080 стор.60 |
| Plug and Play | No setup, no software installation, no PC, no messy cables |
| HDMI Loop Out | HDMI loop out for TX, with zero latency |
| KVM Function | Support IR/Mouse/Keyboard extended function |
| Power Amplifiers | Built-in independent PA, output power of up to 100mw*2 |
| High Security | WPA2/WPA-PSK/WPA2-PSK high security standard |
| Wall-Penetration | Strong enough to penetrate the wall, up to 500ft line of sight |
Higher Power, Wall Penetration, Lower Latency

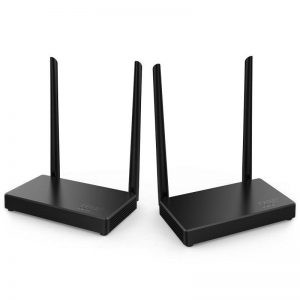

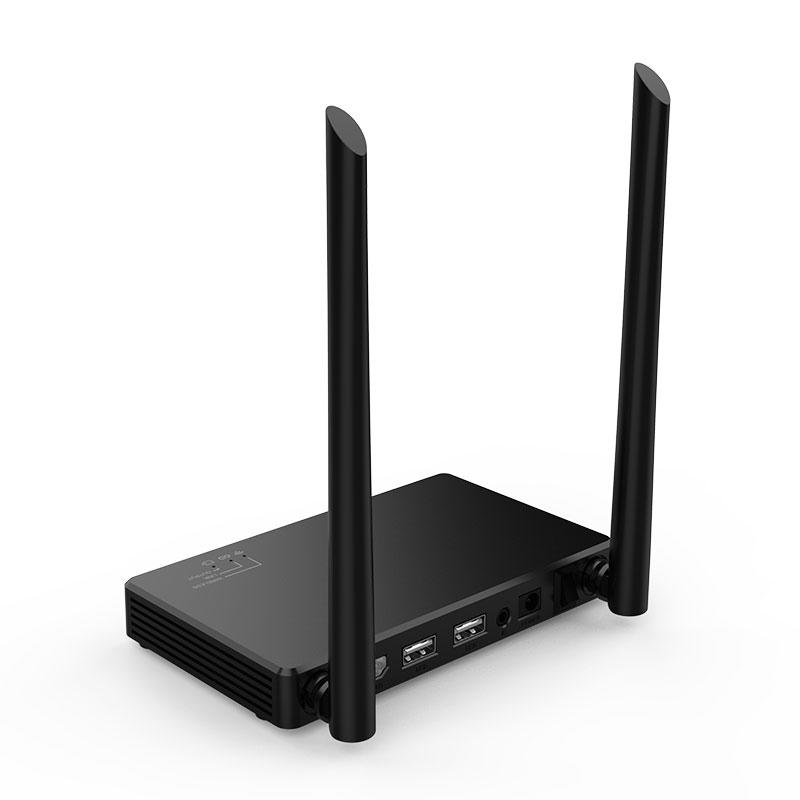

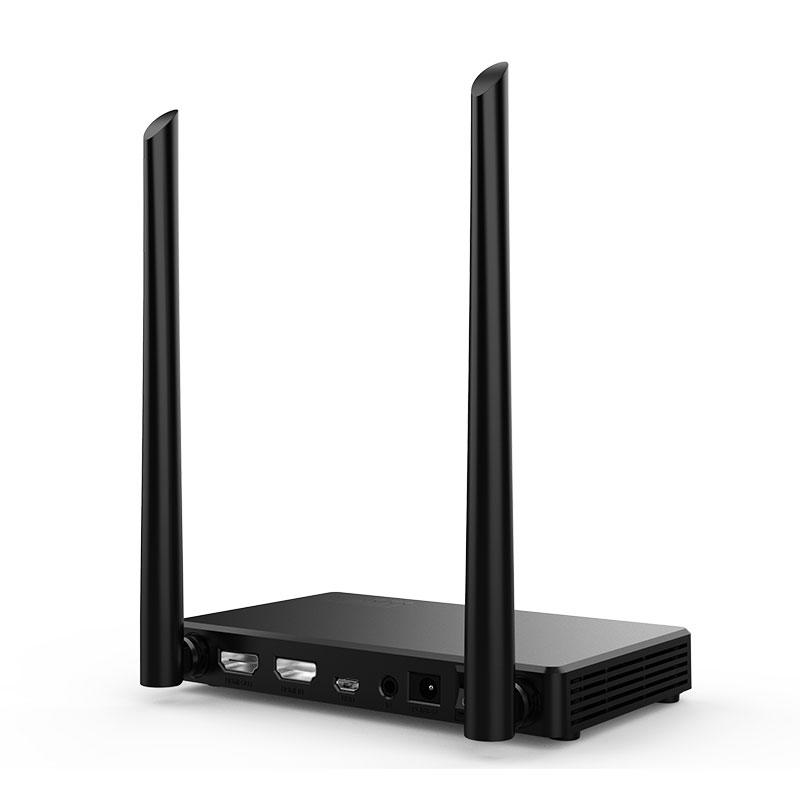

Wireless HDMI Transmitter and Receiver
Private Chipset and Protocol with Ultra-low Latency
With high-efficiency DSP, innovative codec algorithm and low-latency
протокол зв'язку,
Provide excellent real-time streaming experience, with as low as 32ms latency.
1080P@60 High Video QualitySupport multiple resolutions: 480стор.60, 576p50, 720p50/60, 1080i50/60f, 1080p24/30/50/60f HDMI Loop Out for local display |
 |
Independent High-Power Amplifiers for Wall-BreakingBuilt-in independent high-power amplifiers up to 100mw*1, which is up to 2 times transmission power when compared to a normal Wi-Fi, plus 2*5db high gain antennas improves the sensitivity of the Wi-Fi to create a stronger connection, which ensures the wireless signal is strong enough to penetrate walls and other obstacles. |
 |
Support USB KVM FunctionPlug the mouse and keyboard on the receiver to remotely control the video source in another room. The USB data of the mouse/keyboard is sent a wireless to TX which in turn outputs the data to the video source connected to it. |
 |
High-Security ProtectionNo worries about the data security, Support AES 128-bit security encryption and WPA2/WPA-PSK/WPA2-PSK authentication protocol to protect data. Support HDCP to protect the content. |
 |
Control the Video Device Remotely by Infrared
Support infrared extended function to control of the video device from other places, в
infrared support 20-60KHz wide frequency.
 |
 |
 |
 |
| Any Device | Undetectable Latency | Independent PA | 1080P@60F |
 |
 |
 |
 |
| USB Over IP | IR Back Control | Plug and Play | Anti-interference Protocol |
 |
 |
 |
 |
| No Software | 2* 5db Antenna | HDMI Loop out | High Security |
специфікація
| HDMI Version | HDMI 1.4b |
| HDCP Version | HDCP 1.3 |
| Пропускна здатність | 20Mbs bandwidth |
| Power Amplifier | 20 дБм |
| антена | 2*5 dBi antenna |
| Затримка | End to end latency 32ms |
| Підключення | 802.11 b/g/n 2.4G |
| Аудіо | 44.1KHz, 48KHz, 16 біт |
| Споживання | TX less than 10W, RX more than 7.5W |
| Відстань | підтримка 150-200 meters coverage (clear line of sight) |
| Interactive | Support IR/keyboard/mouse extended function |
| Power Supply | AC100 – 240V 50/60Hz, DC 5V/2A |
| Resolution | 1080p/60f/24f, 720P/60f/50f, 576P/50f, 480P/60f, 1080i/60f/50f |
| Інтерфейс: | TX: HDMI out x1, HDMI in x1, Micro USB x 1, IR Jack x1, Power Switcher x 1, DC x1, LED Indicator x3 RX: HDMI out x 1, USB x 2, IR Jack x1, Power Switcher x 1, DC x1, LED Indicator x 3 |
| вимір | TX: 140* 83* 19мм, RX: 140* 83 * 19мм |
| Вага продукту | TX: 198г |
| Certificate | CE/FCC/IEC/TELEC |
| Package Included | HDMI Cable x 2; IR Emitter Cable x 1; IR Receiver Cable x 1; Manual x 1, Gift box x 1 |
| Навколишнє середовище | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃ ~ 70 ℃ (-40℉~158℉) Робоча вологість: 10%~90% Storage Humidity: 5%~90% |
Question and Answer
1. питання: Do you have any test videos for scrolling text, We hope to see the video’s smoothness.
Відповідь: Please check the blow test video.
https://vc48.com/wp-content/uploads/2019/12/Vcan1480_video_smoothness.mp4
2. питання: What size of the transmitter PCBA size?
Відповідь: 11x7cm
3. питання: Please advise the price for 200+ meter Wi-Fi HDMI to HDMI also if can with KVM.
Відповідь: 1080P quotation: 70 USD; 4K quotation: 90 USD.
Anatoliy –
The VCAN1480 Wireless HDMI Kit is a game-changer! Flawless 1080p streaming up to 200m with barely noticeable low latency. Perfect for outdoor events or large venues – maintains stable 2.4G signals through walls. Plug-and-play setup works instantly with any HDMI device. A must-have for AV pros and home theater enthusiasts!
