Ⅰ.IP MESH Introduction

MIMO IP MESH використовує Safe Guard (SFGT) Ключова технологія модуляції COFDM як її ядро, allowing a group of mesh nodes to form a seamless and highly safe private network in NLOS and moving conditions. The COFDM IP MESH network can be in a chain network, зіркова мережа, or random network. The chain network is ideal for range extension to reach a maximum range. The star network is excellent for application in urban environment mission coverage. Випадкова мережа дозволяє вузлам сітки організовувати себе в будь-якій формі.

На відміну від інших бездротових рішень, the IP MESH has the self-managing ability. The COFDM IP MESH keeps adjusting itself when the node is working in moving conditions, щоб вибрати найкращий маршрут для розширення діапазону та передачі сигналу між кожним вузлом сітки.
Що ще, the IP MESH also has a self-healing feature. When one of the nodes stops working, решта вузлів можуть спілкуватися один з одним безпосередньо або через один або кілька проміжних вузлів.

With high flexibility in a mesh topology, the data and video can be exchanged in point-to-point, точка-багато точок, or multipoint-to-multipoint.

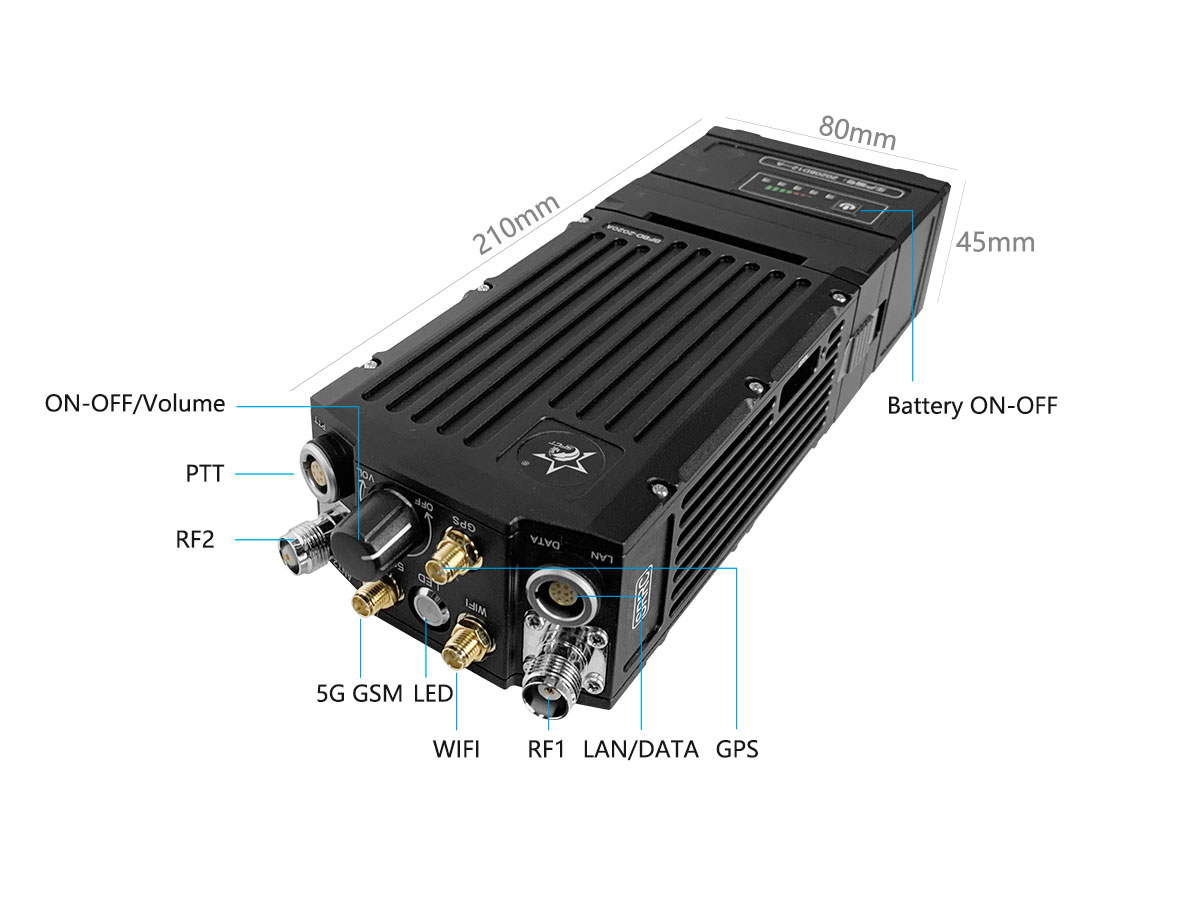

It is a handheld miniature IP MESH at the military-grade level. Designed with a detachable twist lock battery, and PTT (Натисніть щоб говорити) функція, It is perfect for outdoor carrying missions for IP video surveillance feeding back to the command center and voice communication with other mission MESH carriers.

Ⅱ. IP MESH Features

1. Adopt our independently developed technologies COFDM waveform, efficient channel code, and multi-hop ad hoc network protocol.
2. Do not rely on base stations. Able to form a centerless wireless broadband network efficiently and quickly.
3. Provide an IP interface to realize interconnection and interworking with other IP devices.
4. Designed with a detachable lithium battery to ensure that the device is powered for 4-5 годин, as well as an external powered connector.
5. Able to automatically select the best route. Self-organizing, Self-healing can automatically implement network topologies such as chain and star.
6. IP video communication and voice talking with the command center and other mesh nodes.

Ⅲ. IP MESH Parameters
