PtMP ไร้สาย MIMO(2×2) ลิงค์ข้อมูลดิจิทัลของ OEM

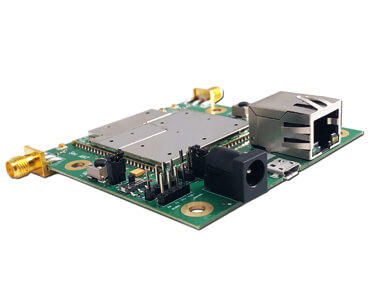

PtMP Wireless MIMO(2x2) OEM Digital Data Link


PtMP ไร้สาย MIMO(2×2) ลิงค์ข้อมูลดิจิทัลของ OEM

Digital Data Link radios provide secure and reliable point-to-point and point-to-multipoint applications where high bandwidth links are required. The data rate is up to be 30Mbps. radio provides unparalleled performance for simultaneous video requirements.

Frequency hopping spread spectrum (รุ่นนี้ออกแบบมาสำหรับการส่งสัญญาณวิดีโอและข้อมูลแบบไร้สายด้วยดาต้าลิงค์ไร้สายแบบสองทาง) is the best choice for immunity to noise and interference. use FHSS to deliver your ethernet signal reliably over very long distances.

supports multi-frequency band: 800Mhz/1.4Ghz/2.4Ghz. It provides high bandwidth Ethernet for size and weight applications such as remote video, วิทยาการหุ่นยนต์, and other wireless Ethernet data transmitting systems.

คุณสมบัติ

Up to 30Mbps wireless link rate

Supports point to point and point to multipoint wireless communication

ระยะยาว, high-speed communications

Excellent receive sensitivity

User-selectable frequency band 800Mhz/1.4Ghz/2.4Ghz

10/100 พอร์ต Ethernet

➢ USB 2.0 interface for debugging

➢ Master and slave working modes

➢ User interface through web IE browser

➢ 2×2 MIMO

➢ Encryption: ซูค, หิมะ 3G, AES

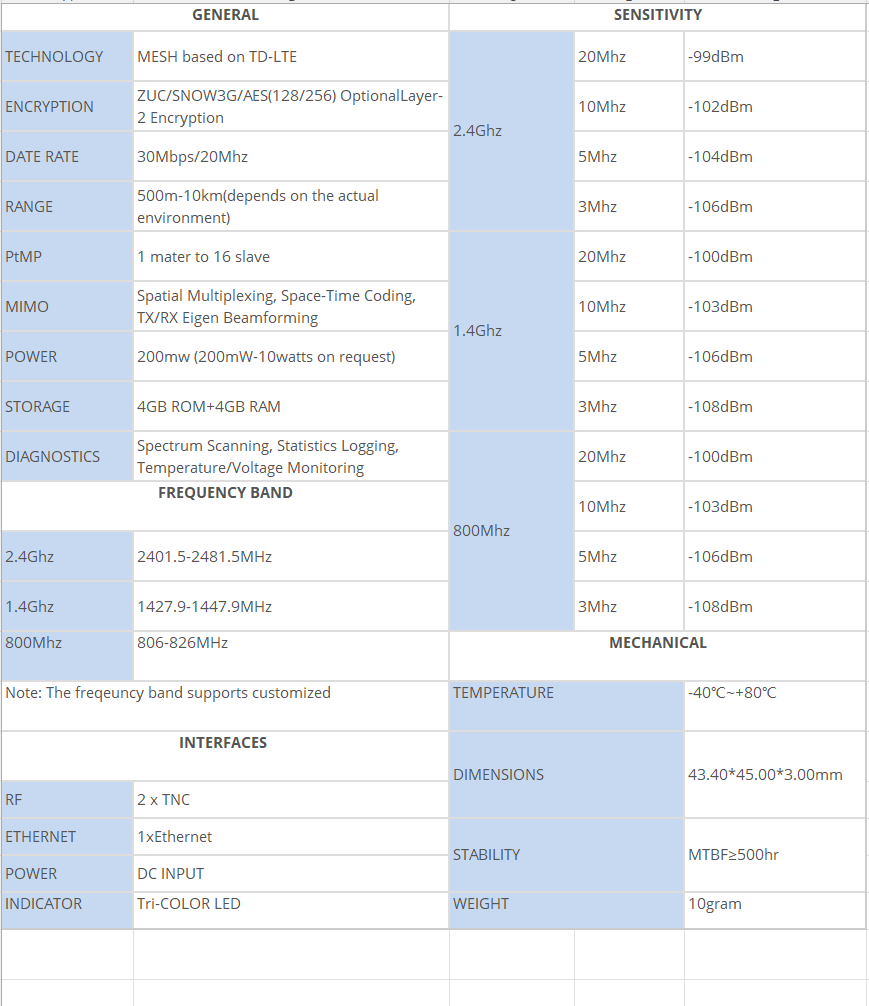

PtMP Wireless MIMO(2x2) OEM Digital Data Link 1

การประยุกต์ใช้งาน

การสื่อสารทางยุทธวิธี

Ethernet Wireless Extension

วิดีโอไร้สาย

Drone/robot collaborative networking

Stable/real-time/long-distance communication

Supports Point to point/point to multi-point hd video transmission for NLOS/LOS

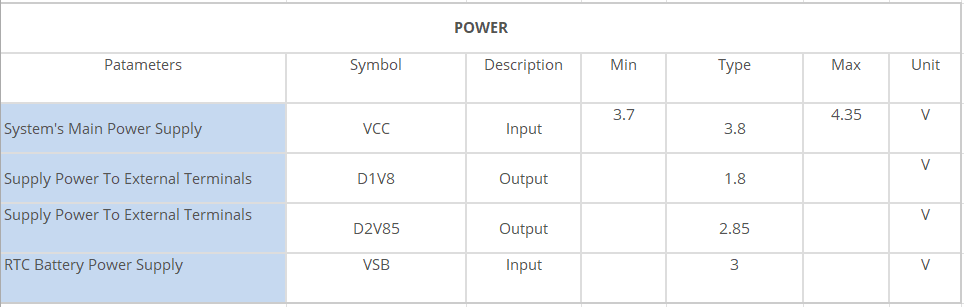

PtMP Wireless MIMO(2x2) OEM Digital Data Link 2
PtMP Wireless MIMO(2x2) OEM Digital Data Link 3
