Модуль приемника H265 COFDM

– 160Модуль приемника HD-видео COFDM МГц ~ 860 МГц с выходом HDMI/AV/USB
    – H.265 video decoder

The COFDM receiver module is a compact digital diversity receiver with integrated H.265 decoding, suitable for use in fluid and high-mobility applications. The receiver module accepts signals from two antennas to significantly enhance the demodulated performance and increase the operating range. The receiver module can find and lock automatically to the incoming transmission quickly according to the pre-set frequency and bandwidth. This receiver module features a range of comprehensive signal outputs including HD at 720p and 1080P, видео монитора HD CVBS с понижением частоты, and two analog audios is supported.

The receiver module also includes DVR record functionality with Micro SD card or USB disk. The receiver module also enables video streaming over USB for remote Android device decoders like Smart phone or Android PAD. This allows multiple remote viewers to monitor the same video simultaneously. The receiver module also supports display characters string on the video display screen with the video together in OSD mode.

When paired with the COFDM transmitter module, the receiver module offers a comprehensive, rapidly-deployable video and audio solution that enables advanced situational awareness. It can play an essential role in delivering real-time live video from both ground and airborne mobile platforms.

• COFDM demodulation and H.265 video decoder
• Разрешение Full HD, 1080P@60 кадров в секунду
• Great security by AES decryption
• DVR record with Micro SD card or USB disk
• Enables video streaming over USB host for remote device
• Supports display characters string on the video display screen in OSD mode
• Стабильная передача сигнала в условиях NLOS и высокоскоростном движении.
• Adjustable working frequency, band width

Paired with COFDM transmitter

The HD video latency from its inputting of the transmitter to the HDMI screen displaying of the receiver is about 200ms to 250ms.

The SHD5&DR2C module can also be paired with SUE5&RCB transmitter module(or SUE5SA&RCB module) for two channels video transmission when manufactured with specified firmware. The specified firmware enables SHD5&DR2C module to decode two channels H.265 video and send to display with button switch for channel one, channel two, channel one plus channel two on one screen.

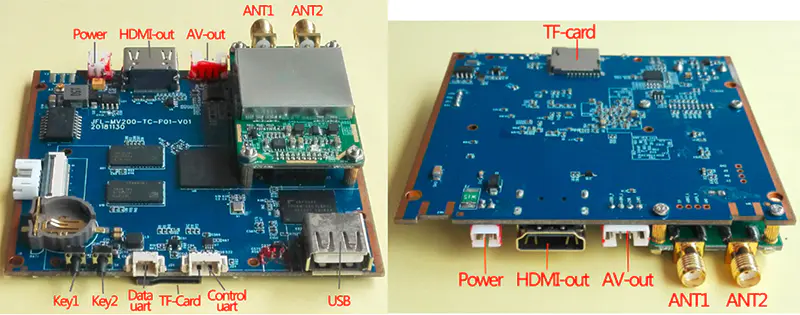

IO

HD Video output	HDMI type “A” Connector
Композитный видеовыход	4PIN-разъем PH2,0 мм
Аудио выход	Embedded HDMI and 4PIN PH2.0mm connector
ВЧ вход	Two SMA female
Включение питания	2PIN PH2.0mm Connector
USB-хост	Type A connector
Data uart	3PIN PH1.25mm Connector, ТТЛ 3,3 В
control uart	4PIN PH1.25mm Connector, ТТЛ 3,3 В
TF-карта	Слот для TF-карты
Ключ 1	Button Switch for OSD-display
Ключ 2	Button Switch for Video recording

Видео и аудио

Видео выход	HDMI и CVBS, USB
Видео форматы	1080P or 720P or 4K(3840*2160п) 720*480 60я(NTSC), 720*576 50я(PAL)
Декодирование видео	H.265
Аудио выход	Embedded HDMI and AV audio
Audio decoding	ААС
Хранилище	USB disk or TF-Card
Расшифровка	AES256

демодуляция

Demodulation Formats	COFDM(DVB-T)
Перевозчики	2К
Пропускная способность	Configurable from 1MHz to 8MHz, дополнительный RS232
ПИО	1/2, 2/3, 3/4, 5/6, 7/8(lock automatically according to the transmitter)
Защитный Интервал	1/32, 1/16, 1/8, 1/4(lock automatically according to the transmitter)
созвездие	QPSK, 16QAM, 64QAM(lock automatically according to the transmitter)
Bitrates	0.5Mbps to 31.67Mbps(according to the transmitter)

RF

Диапазоны частот	Selectable from 160MHz~860MHz
Tuning Step size	1КГц
чувствительность	-97±1dBm(BW=8MHz, QPSK, CR=2/3, GI=1/16) for one channel and add 3dBm for two channel

Мониторинг и контроль
Comprehensive receiver setup with Config Panel or Windows PC via Control UART.

Диапазон температур
Полная спецификация: 0° до +70°C Окружающая среда
Хранилище: –40° to +80°C

Требования к питанию
Диапазон ввода: 9~24 В постоянного тока
Потребляемая мощность: <300мА при 12 В

Физические характеристики
Board dimensions: 85.6*79.6мм
