H265 COFDM Receiver Module

– 160MHz~860MHz HD video COFDM receiver module with HDMI/AV/USB output
    – H.265 video decoder

The COFDM receiver module is a compact digital diversity receiver with integrated H.265 decoding, suitable for use in fluid and high-mobility applications. The receiver module accepts signals from two antennas to significantly enhance the demodulated performance and increase the operating range. The receiver module can find and lock automatically to the incoming transmission quickly according to the pre-set frequency and bandwidth. This receiver module features a range of comprehensive signal outputs including HD at 720p and 1080P, video monitor HD CVBS yang dikonversi ke bawah, dan dua audio analog didukung.

The receiver module also includes DVR record functionality with Micro SD card or USB disk. The receiver module also enables video streaming over USB for remote Android device decoders like Smart phone or Android PAD. This allows multiple remote viewers to monitor the same video simultaneously. The receiver module also supports display characters string on the video display screen with the video together in OSD mode.

When paired with the COFDM transmitter module, the receiver module offers a comprehensive, rapidly-deployable video and audio solution that enables advanced situational awareness. It can play an essential role in delivering real-time live video from both ground and airborne mobile platforms.

• COFDM demodulation and H.265 video decoder
• Resolusi HD penuh, 1080P@60fps
• Great security by AES decryption
• DVR record with Micro SD card or USB disk
• Enables video streaming over USB host for remote device
• Supports display characters string on the video display screen in OSD mode
• Transfer sinyal stabil di NLOS dan pergerakan kecepatan tinggi
• Frekuensi kerja yang dapat disesuaikan, lebar pita

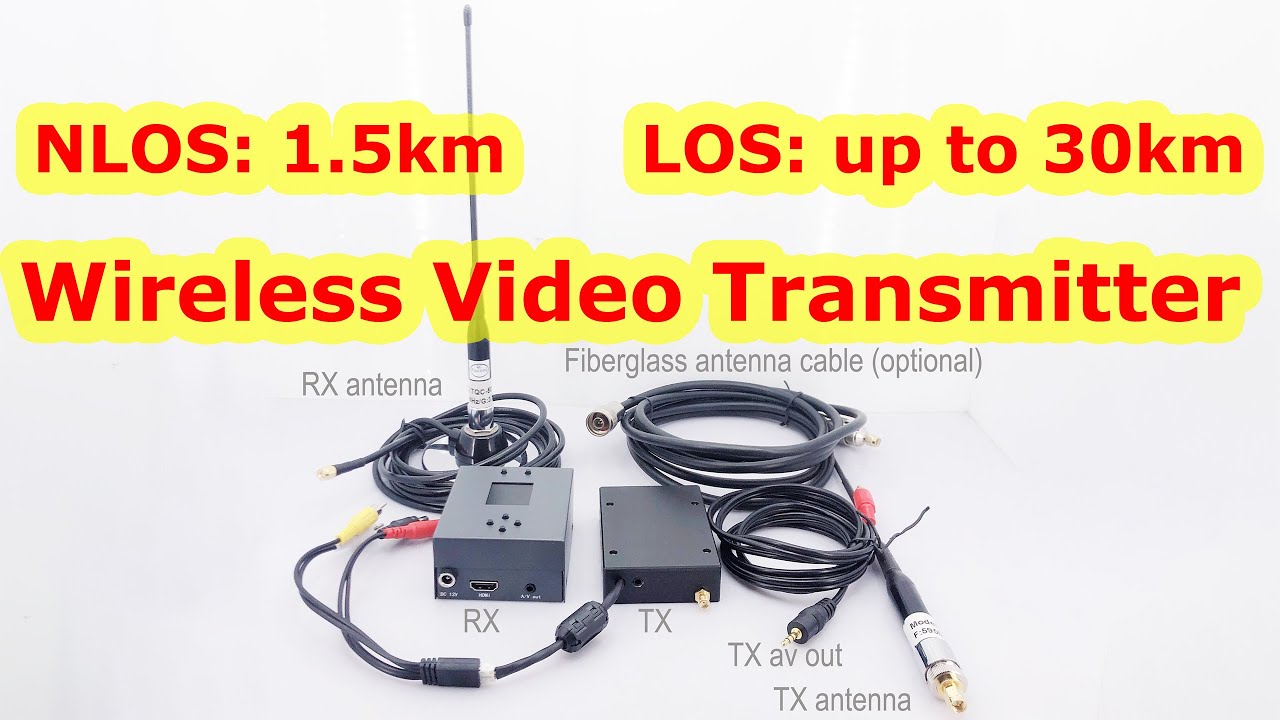

Paired with COFDM transmitter

Latensi video HD dari input pemancar ke tampilan layar HDMI penerima adalah sekitar 200 ms hingga 250 ms.

The SHD5&DR2C module can also be paired with SUE5&RCB transmitter module(or SUE5SA&Modul RCB) for two channels video transmission when manufactured with specified firmware. The specified firmware enables SHD5&DR2C module to decode two channels H.265 video and send to display with button switch for channel one, channel two, channel one plus channel two on one screen.

IO

HD Video output	HDMI type “A” Connector
Keluaran video komposit	4Konektor PIN PH2.0mm
Keluaran audio	Konektor HDMI dan 4PIN PH2.0mm tertanam
masukan RF	Dua perempuan SMA
Daya masuk	2Konektor PIN PH2.0mm
Tuan Rumah USB	Type A connector
Datanya bagus	3Konektor PIN PH1.25mm, TTL 3.3V
kontrol uart	4Konektor PIN PH1.25mm, TTL 3.3V
Kartu TF	Slot Kartu TF
Key 1	Button Switch for OSD-display
Key 2	Button Switch for Video recording

Video dan Audio

Keluaran video	HDMI dan CVBS, USB
Format video	1080P or 720P or 4K(3840*2160P) 720*480 60SAYA(NTSC), 720*576 50SAYA(SAHABAT)
Penguraian Video	H.265
Keluaran audio	Embedded HDMI and AV audio
Penguraian audio	AAC
Penyimpanan	USB disk or TF-Card
Dekripsi	AES256

demodulasi

Demodulation Formats	COFDM(DVB-T)
Operator	2K
Bandwidth	Dapat dikonfigurasi dari 1MHz hingga 8MHz, selangkah demi selangkah 1KHz
FEC	1/2, 2/3, 3/4, 5/6, 7/8(lock automatically according to the transmitter)
Interval penjaga	1/32, 1/16, 1/8, 1/4(lock automatically according to the transmitter)
Konstelasi	QPSK, 16QAM, 64QAM(lock automatically according to the transmitter)
Kecepatan bit	0.5Mbps hingga 31,67Mbps(according to the transmitter)

RF

Pita Frekuensi	Selectable from 160MHz~860MHz
Ukuran Langkah Penyetelan	1KHz
Kepekaan	-97±1dBm(BB = 8MHz, QPSK, CR=2/3, GI=1/16) untuk satu saluran dan tambahkan 3dBm untuk dua saluran

Pemantauan dan pengendalian
Comprehensive receiver setup with Config Panel or Windows PC via Control UART.

Kisaran suhu
Spesifikasi lengkap: 0° hingga +70°C Lingkungan
Penyimpanan: –40° hingga +80°C

Persyaratan daya
Rentang masukan: 9~24VDC
Konsumsi daya: <300mA@12V

Ciri-ciri Fisik
Board dimensions: 85.6*79.6mm
