Wireless Video Transmission Equipment

300-999Mhz Drone Video Transmitter Microwave Surveillance Wireless Video Transmission Equipment
Падрабязнае апісанне прадукту
магутнасць РЧ: 1-3W
AV Input: HD
мадуляцыя: COFDM
працоўная частата: 300МГц ~ 999 МГц (апцыянальны)
FFT: 2K/8K
вага: 485г

300-999Mhz Drone Video Transmitter Microwave Surveillance Wireless Video Transmission Equipment
UAV Digital Wireless Transmitter and Receiver Feature:

Compactly designed, Новы бесправадной відэаперадатчык COFDM HDMI CVBS уваход міні-модулятар модуль міжгародняга FPV БПЛА;
Раздзяленне Full HD, low delay;
High performance, нізкі кошт

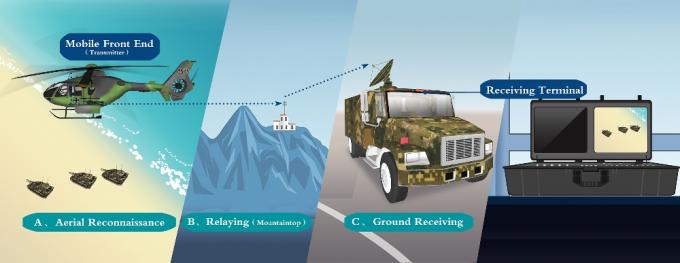

Special for UAV/Drones long-range video communication;
A maximum output 3Watt can support the 40km LOS range.
апісанне:
KP-HD803 is full HD image transmission system equipment, with standard DVB-T modulation. The product uses advanced video processing technology and an efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate, and then improve image quality. It can be the lowest bit rate to achieve the best quality of the image.

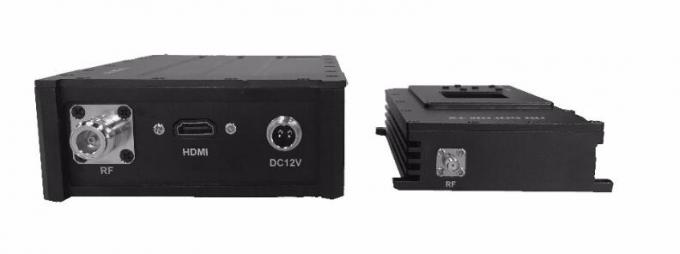

COFDM UAV Transmitter specification:

Power supply DC 7-16V input/output
спажываная магутнасць <5W Modulation DVB-T Modulation type QPSK/16 QAM/64 QAM Scrambling way Manual settings ON/OFF RF power output 1-3Watt (2Рэжым K) RF bandwidth 8MHz AV input HD Resolution HD1080P(1920*1080), сумяшчальнасць 1080I, 720P,480P and standard resolution Video compression H.264/MPEG-4/MPEG-2 Antenna output 50Ω, SMA or “N” type Connector Working frequency 300MHz~999MHz (апцыянальны) Step frequency 1K Steps Guard interval(салдат) 1/4, 1/8, 1/16, 1/32 (апцыянальны) Кодавая хуткасць (CR) 1/2, 2/3, 3/4, 5/6, 7/8 (апцыянальны) FFT 2Kor 8K MER >34дБм
LCD display showing working status and parameters
Parameter setup Manual operation by buttons
вымярэнне 15310034мм
Weight 485g

COFDM Receiver Feature:
Working Voltage DC input 7-24V
спажываная магутнасць <4W
Modulation DVB-T
Sensitivity -82dBm (64QAM, 8M/FFT:8Да, салдат:1/32, CR:7/8)
Working frequency 300MHz~999MHz(апцыянальны), 16 групы частотнага выбару
RF bandwidth 8MHz
AV output HD
Resolution HD1080P(19201080), сумяшчальнасць 1080I, 720P,480P and standard resolution Video compression H.264/MPEG-4/MPEG-2 RF connector N-type LED light Turns red when the machine is power on Work indicator Automatically search signal after power-on, сіні колер і ўспышка; Падчас прыёму сігналу, сіні індыкатар застаецца гарэць. у адваротным выпадку, згасае святло. Scrambling way Manual settings ON/OFF Dimension 197124*51мм
Weight 1024g
