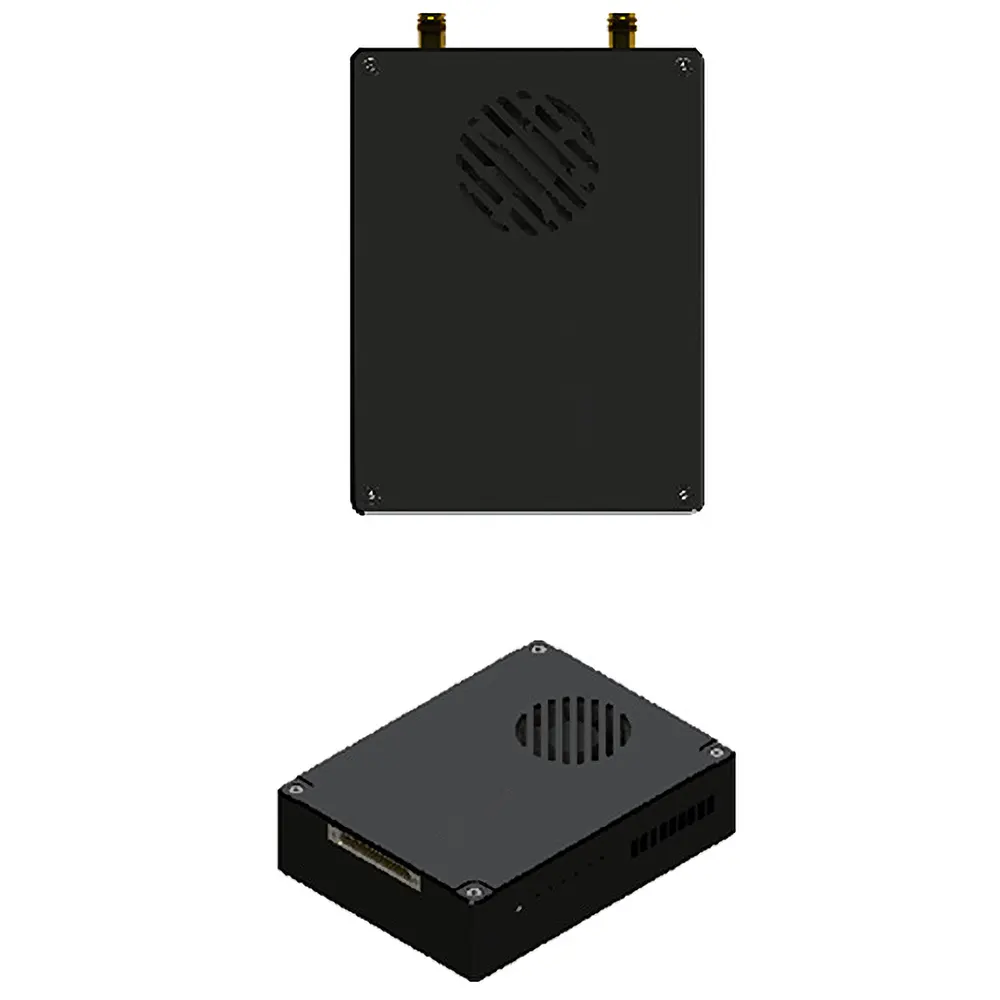

50-100km Drone Draadloze videogegevenscontrole Zender en ontvanger 2W-5WPA 1.4G-2.4G Vcan1805

50-100km Drone Wireless Video Data Control Transmitter and Receiver

50-100km Drone Wireless Video Data Control Transmitter and Receiver 2W-5WPA 1.4G-2.4G

Kenmerken

1. Dynamic antenna switching and receiving diversity
2. Video compression and decompression using H.264 and H.265
3. Adaptive frequency hopping and low-level re-transmission
4. Super light, super small, and super powerful
5. Transmission Distance 30-100km.
6. Long-range transmission: The transmission distances are 30km, 50km, and 100km under the condition of sight. Super strong diffraction ability and penetrating ability.
7. Klein formaat en lichtgewicht: Sterk geïntegreerde, the size of the airborne transmitter is 92.5×70.3x25mm, and the weight is only 198g
8. Standardization: in line with the requirements for unmanned aircraft system wireless channel configuration and radio equipment radio frequency indicators

Specificatie

• Frequentie: 1330-1450MHz or 2.4G customized
• bandbreedte: 10MHz (uplink); 10MHz(downlink)
• macht: 33dBm
• Modulatie: OFDM
• Sterrenbeeld: BPSK, QPSK, 16QAM
• FEC: LDPC(1/2.2/3.3/4,5/6)
• Dubbelzijdig: TDD
• Throughput: 2.3Mbps~8Mbps(downlink); 600kbps(uplink)
• Encryption: AES 256
• Interface: Ethernet, USB, TTL, RS232, RS422, PPM/S.BUS
• macht consumptie: 18w(air eenheid); 10w(grondeenheid)
• Wachttijd: <300Mevrouw (Camera dependent)
• Gewicht: 198g
• Dimensie: 92.5MMX70.3MMX25MM
• Rated voltage/current: DC24V/1.2EEN (or 6S lithium battery)
• Werktemperatuur: -40~60° C
