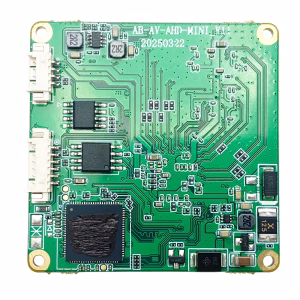

Mini CVBS / AV / AHD to IP Network Video Encoder – H.264/H.265 Hardware Live Streaming Converter Board

Description

Compact na hardware video encoder board na nagko-convert ng CVBS, AV at AHD analog signal sa mga IP stream na may suportang H.264/H.265, mababang latency, Kakayahan ng ONVIF, malawak na boltahe na input at industrial-grade stability para sa live streaming at surveillance.

---

Pangkalahatang-buod

Ang Mini CVBS/AV/AHD Network Video Encoder na ito ay isang compact ngunit malakas na solusyon sa pag-encode ng hardware na idinisenyo upang i-convert ang mga analog na signal ng video sa mga de-kalidad na digital IP stream sa real time. Ginawa para sa propesyonal na live streaming, Mga Sistema ng Pagsubaybay, Pagsubaybay sa Industriya, at naka-embed na mga proyekto sa pagsasama, ang encoder ay naghahatid ng matatag na pagganap, mababang huling transmission, at malawak na compatibility sa mga mainstream na camera at NVR platform.

With support for both H.264 and H.265 compression formats up to 1080P at 60FPS, the device ensures efficient bandwidth usage without compromising image clarity. Its miniature 4.5 × 4.5 cm PCB size makes it ideal for space-constrained installations such as drones, mga robot, vehicle systems, portable broadcasting kits, and custom electronic equipment. The board supports CVBS, AV, and AHD input formats, automatically adapting to PAL and NTSC signals, making it a versatile solution for global deployments.

Designed with industrial-grade components, this encoder operates reliably in extreme temperatures ranging from –40°C to 80°C. Advanced hardware de-interlacing technology prevents motion artifacts such as horizontal tearing and streaking, ensuring smooth visuals even during rapid movement scenes. Built-in protection mechanisms including over-voltage, over-current, short-circuit, at ang proteksyon ng ESD ay ginagarantiyahan ang ligtas at pangmatagalang operasyon sa mga mahirap na kapaligiran.

---

Mga tampok

• Hardware De-Interlacing Processing
  Tinatanggal ang motion blur, pahalang na linya, at pagpunit ng imahe sa mga eksena ng mabilis na paggalaw.

• Malawak na pag -input ng boltahe (5V–24V Nako-customize)
  Sinusuportahan ang sobrang boltahe, over-current, short-circuit, at electrostatic na proteksyon para sa pinahusay na kaligtasan.

• Multi-Format Camera Compatibility
  Gumagana sa mga pangunahing AV camera (Auto detection ng PAL/NTSC) at mga AHD camera hanggang 720P/1080P.

• High-Performance Encoding
  Sinusuportahan ang H.264 at H.265 compression hanggang 1920×1080 sa 60FPS.

• Suporta sa protocol ng network
  Tugma sa TCP, UDP, RTSP, RTCP, at ONVIF protocol para sa tuluy-tuloy na pagsasama sa mga NVR at pangunahing platform.

• 100M Ethernet Interface
  Matatag na wired na koneksyon sa network sa pamamagitan ng 4-Pin 1.25mm connector.

• Mga Napapalawak na Interface
  May kasamang 1 UART serial port, maramihang mga interface ng IO, at 1 USB 4-Pin 1.25mm port.

• Pangmatagalang Katatagan
  Ininhinyero para sa tuluy-tuloy 24/7 operasyon nang walang pagkasira ng pagganap.

• Efficient LAN Streaming
  Can work with matching hardware decoders through optimized UDP protocol for internal network deployment.

• Hardware Encryption Chip Support
  Enhances data security and prevents unauthorized access.

• Bidirectional Serial & Network Transparent Transmission
  Enables remote command control and data communication.

• Status Indicator LEDs
  Power and working status lights for easy diagnostics.

• Automatic Firmware Upgrade via USB Drive
  Simplifies maintenance and system updates.

• Video Loop Output Support
  AV/CVBS loop-through output for simultaneous monitoring.

• Image Enhancement Controls
  Madaling iakma ang liwanag, contrast, saturation, and hue settings.

• Factory Reset Function
  Quick restoration to default configuration.

• Industrial Temperature Range
  Reliable operation from –40°C to +80°C.

---

Mga pagtutukoy

• Video Input: CVBS / AV / AHD

• Video Encoding: H.264 / H.265

• Max Resolution: 1920 × 1080 @ 60FPS

• Network Interface: 100M ethernet (TX+, TX–, RX+, RX–, PAGWAWASTO)

• Mga Protocol: TCP, UDP, RTSP, RTCP, ONVIF

• Input ng kapangyarihan: 5V–24V (nako-customize)

• Proteksyon: Sobrang boltahe, Over-current, Short-circuit, ESD

• Operating temperatura: –40°C to 80°C

• Mga Interface: UART ×1, USB ×1, Multi-IO Ports

• Loop Output: AV/CVBS Supported

• Mga dimensiyon: 4.5 cm × 4.5 cm

• Firmware Upgrade: USB Auto Update

• Seguridad: Optional Hardware Encryption Chip

---

Kumpigurasyon

SearchTool_EN.rar / HDIPCameraToo.exe

https://drive.google.com/file/d/1X1Fk1tWBqEtJ7HhhJcaA05-DuzfxzPl1/view?usp=drive_link

UserName: admin Password: wala, just cick ok to enter.

---

Mga aplikasyon

• IP Surveillance and Security Systems

• Live Broadcasting and Streaming

• Industrial Machine Vision

• Smart Transportation and Vehicle Monitoring

• UAV / Paghahatid ng video ng drone

• Robotics and Embedded Systems

• Medical Imaging Devices

• Educational Broadcasting Systems

• Portable Video Recorders

• Remote Inspection and Control Platforms

---

Mga pagpipilian sa pagpapasadya

• Customized input voltage range

• Logo and firmware branding

• Protocol optimization for private platforms

• Encryption chip integration

• PCB layout modifications

• Connector type changes

• Temperature grade upgrades

• Software UI customization

• Batch pre-configuration services

---

FAQ

Q1: Does the encoder support both PAL and NTSC cameras?
Oo, the device automatically detects and adapts to PAL and NTSC formats without manual configuration.

Q2: Can it work with AHD cameras?
Oo, it supports mainstream AHD cameras up to 720P and 1080P resolutions.

Q3: Is this suitable for 24/7 tuluy -tuloy na operasyon?
Ganap. It is designed for long-term industrial use with stable hardware components.

Q4: How is firmware upgraded?
Firmware can be automatically upgraded using a USB flash drive, making maintenance simple and fast.

Q5: Does it support ONVIF?
Oo, ONVIF compatibility allows easy integration with most NVRs and surveillance platforms.

Q6: Can I adjust image quality settings?
Oo, liwanag, contrast, saturation, and hue can all be adjusted.

Q7: Ano ang saklaw ng temperatura ng operating?
The encoder operates reliably from –40°C to +80°C, suitable for harsh environments.

Q8: Is hardware encryption available?
Oo, an optional hardware encryption chip can be integrated for enhanced security.
