بدون طيار IP MESH فيديو الهابطة

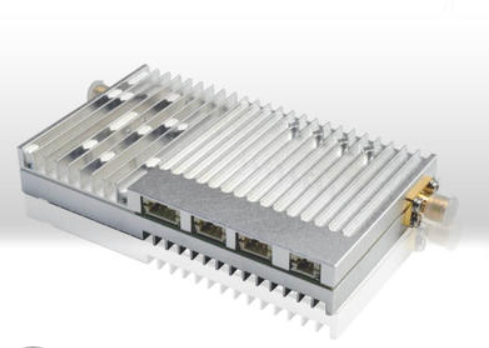

100km Drone IP MESH Video Downlink

It builds a no center, تشكيل ذاتي, التكيف الذاتي, and self-healing dynamic routing/
automatic relay communication mesh network. It achieves dynamic routing, multihop relay HD video, بيانات متعددة القنوات, ودقة الصوت بين العقد المختلفة لنفس الشبكة في التطبيقات المعقدة, such as fast movement and non-line-of-sight environmental distance.
Smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH, which make it provide real-time HD video and broadband Ethernet connection with a 30Mbps transmission rate and distance of 100km-150km or more. It Is special for wireless communication in critical private networks.

100km Drone IP MESH Video Downlink

دلائل الميزات

➢Bandwidth 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz

➢10Watts RF power

➢Light weight: 280ز

➢Transmitting Power: 40ديسيبل

➢Support 800Mhz/1.4Ghz frequency options

➢Air to ground 100km-150km range

➢NLOS 3km-10km ground to ground distance

➢Automatic power control

➢Automatic frequency point control

➢Ethernet communication via PH2.0 interface

➢RS232 communication via PH2.0 interface

الوضعية

➢Point-to-multipoint long-distance communication

➢Power and hydrological line patrol monitoring

➢Emergency communications for fire fighting, border defense, and military

➢Maritime communications

➢Digital oilfield

➢Fleet formation

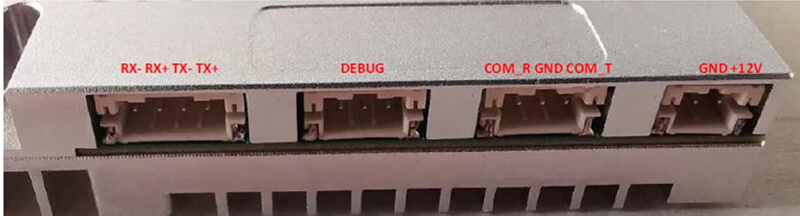

جهة تعامل

COMMENT

المستوى الكهربائي	2.85مجال الجهد V ومتوافق مع مستوى 3V / 3.3V
بيانات التحكم	RS232
بالباود	115200بت في الثانية
وضع الإرسال	وضع التمرير
مستوى الأولوية	Higher priority than the network port when the signal transmission crows, سيتم إرسال بيانات التحكم في الأولوية
ملحوظة: 1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-615MT node can receive serial data.2. If you want to distinguish between sending, يستلم, والسيطرة, you need to define the format yourself

Automatic Frequency Point Control

After booting, the Mimo mesh will try to network with the pre-stored frequency points before the last shutdown. If the pre-stored frequency points are not suitable for network deployment, it will automatically try to use other available frequency points for network deployment.

التحكم التلقائي في الطاقة

The transmitting power will be automatically adjusted and controlled according to the real-time signal quality.
