I need a wireless video monitor system 2km ground to ground.

2km wireless video transmitter diagram

We need a quote for a monitoring system from a distance of approximately 2km away.

– The monitoring system consists of 6 or 8 cameras (depending on your ability to meet the requirements), in addition to the components detailed below.

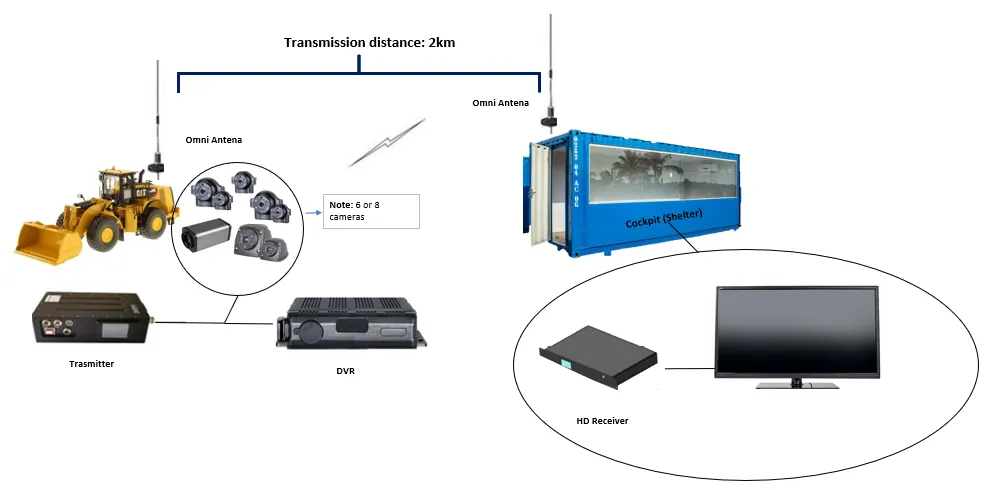

– You can check the detailed application in the image below and more details in the technical scope of the project attached.

I need a wireless video monitor system 2km ground to ground. 1
Transmitter
Parameter DescriptionParameter
Analog or Digital:Digital
Frequency [MHz – GHz]250 MHz – 850 MHz
ModulationCOFDM
Voltage [V]12 V – DC
Resolution [p]1080p (Full HD)
Receptor
Parameter DescriptionParameter
Frequency [MHz – GHz]250 MHz – 850 MHz
ModulationCOFDM
Voltage [V]12 V – DC
Resolution [p]1080p (Full HD)
DVR
Parameter DescriptionParameter
Number of channels8
Number of triggers8
Output1080p (Full HD)
Type of ProtocolRTSP
Audio OutputYes
Cameras 130°
Parameter DescriptionParameter
Quantity5
Angle130°
Output1080p (Full HD)
Audio OutputYes
Cameras 170°
Parameter DescriptionParameter
Quantity2
Angle170°
Output1080p (Full HD)
Audio OutputYes
Camera with Zoom
Parameter DescriptionParameter
Quantity1
Angle130°
Output1080p (Full HD)
Zoom20x~30x
Zoom controlBy wire

Thanks for your inquiry.

According to your project details, I have attached a file for your reference.

1. It is better that your camera is all IP camera, (also supports 1080P), if your camera is an HDMI camera, you need plus an HDMI to Data convertor.

2. 6 IP cameras use one router to connect our transmitter by network cable RJ45. The receiver also has RJ45 output to an NVR, NVR has HHDMI output to your monitor.

3. It is better to use 4 or 6 cameras. if using 8 cameras at the same time. the video speed will be slow. It is easy to understand if you have 8 PC to download 1080p video, then the net speed will be slow.

4. If the transmission distance is longer and longer, the net speed will be slower and slower. If the work environment is bad, we will change more strongly PA (power amplifier)

5. At our test video, we have shown you that the person can operate the PTZ control at the receiver, then the zoom camera at the transmitter can pan or zoom.

2km wireless video transmitter diagram
2km wireless video transmitter diagram

Any questions, please feel free to contact me.
